BR-MDVR08 System 8 Channel AHD MDVR with a 256G SD Card

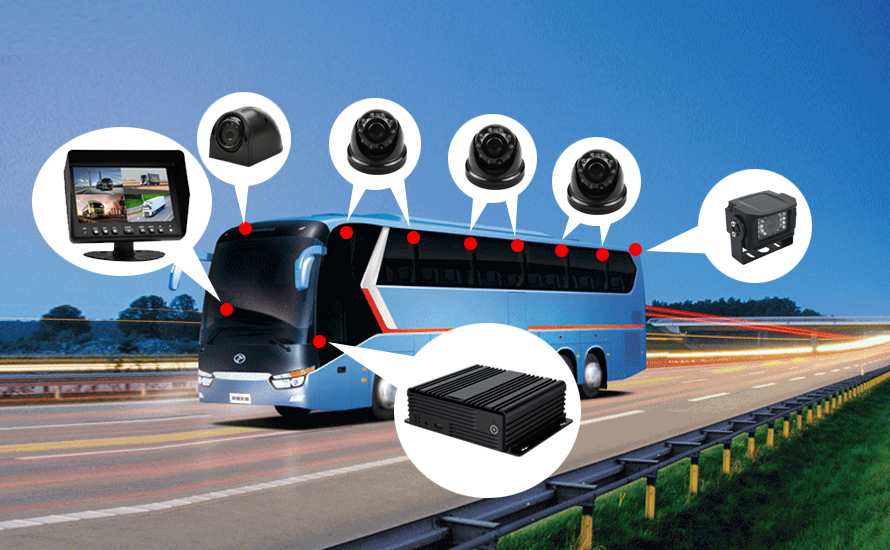

MDVR08 system The system consists of an AHD monitor, an MDVR and six cameras. The popular 8 channel AHD DVR supports 8 channels real-time preview and storage with a 256G SD card. It has built-in high performance image processing chip, H.265 video compression code and high compression ratio. All waterproof cameras come with excellent night vision. They can provide the driver with a very clear image whether it is day or night.

All Mobile DVR Contact us

Item No.	BR-MDVR08
Operating system	Embedded Linux Operating System
Operating language	Chinese / English
Operation interface	Graphical menu operation interface, support mouse operation
Password security	User password, administrator password two-level management
Video TV System	PAL/NTSC
video compression	H.265
Resolution	1080P/720P /960H/D1
Playback quality	1080P/720P /960H/D1
Combination	Various ways
Decoding capability	8-channel 1080P real time
Video quality	Levels 1 to 5 are available
Screen Display	1、2、3、4、9 picture view
Audio Compression	G.711A
Audio recording	Audio & Video synchronized recording
Video mode	Manual and alarm
Video bit rate	Full frame 3072mbps, 5 classes image quality optional
Storage media	Hard disk + SD card
Video inquiry	It can be retrieved by time, file, channel, recording type and alarm type
Local Playback	1-8 channels, by time, channel
GPS	Support detecting antenna Plug in/Unplug/Short circuit test
2G/3G/4G	Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
WIFI	802.11b/g/n，frequency 2.4GHz
Power input	DC：9V~40V
Power output	12V 2A
Operating Temperature	-40 --- 80℃(PCB)
External Dimensions	191mm149mm55mm

All Mobile DVR Contact us

DOWNLOAD CENTER

BR-MDVR08 System All image.JPG

BR-MDVR08 System 2D drawing.PDF

BR- MDVR08 System User manual.PDF

Download more

PICTURE CENTER

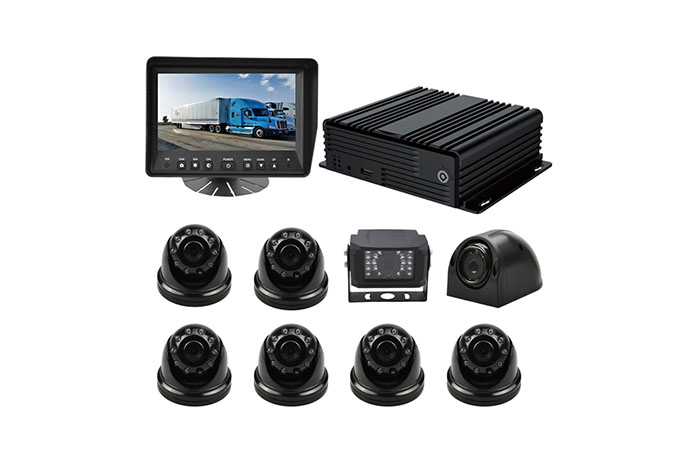

BR-MDVR08 System This system included a 7" TFT Digital monitor,8 720P camera input recording and a DVR. Waterproof 8 channel vehicle DVR with 4G & GPS &WIFI server platform & AHD 1080P video input is now available. Hard disk + SD card Storage media. Anti-vibration 10G and anti-shock rating 100G. H.265 video compression code, high compression ratio and clear image. Built-in G-sensor and real vehicle driving behavior time monitoring can help drivers drive safely.The MDVR supports 8 channel real-time preview and storage. Free software for Server and client end and playback software are available. It can work well in the extreme weather.

VIDEO CENTER

ANSWER CENTER

1. Do you provide instructions？
We put a paper manual in the product packaging box. If lost, please search our product model directly and download the product manual on the product page.
2. Can I install this product？
Many people can easily install our products without hiring help. Click here to search for recommended installations in your region.
3. Is the quality of this product reliable?
All of our products have been strictly inspected, including high and low temperature test, anti-vibration test, aging test and so on. CE, FCC, E-MARK, ISO, RoHS and ATF16949 are available.
4. How long is the warranty?
All of our products comes with 13 months warranty.
