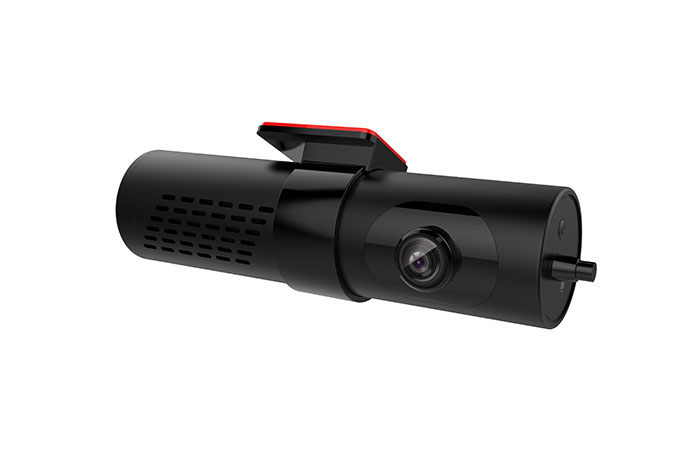

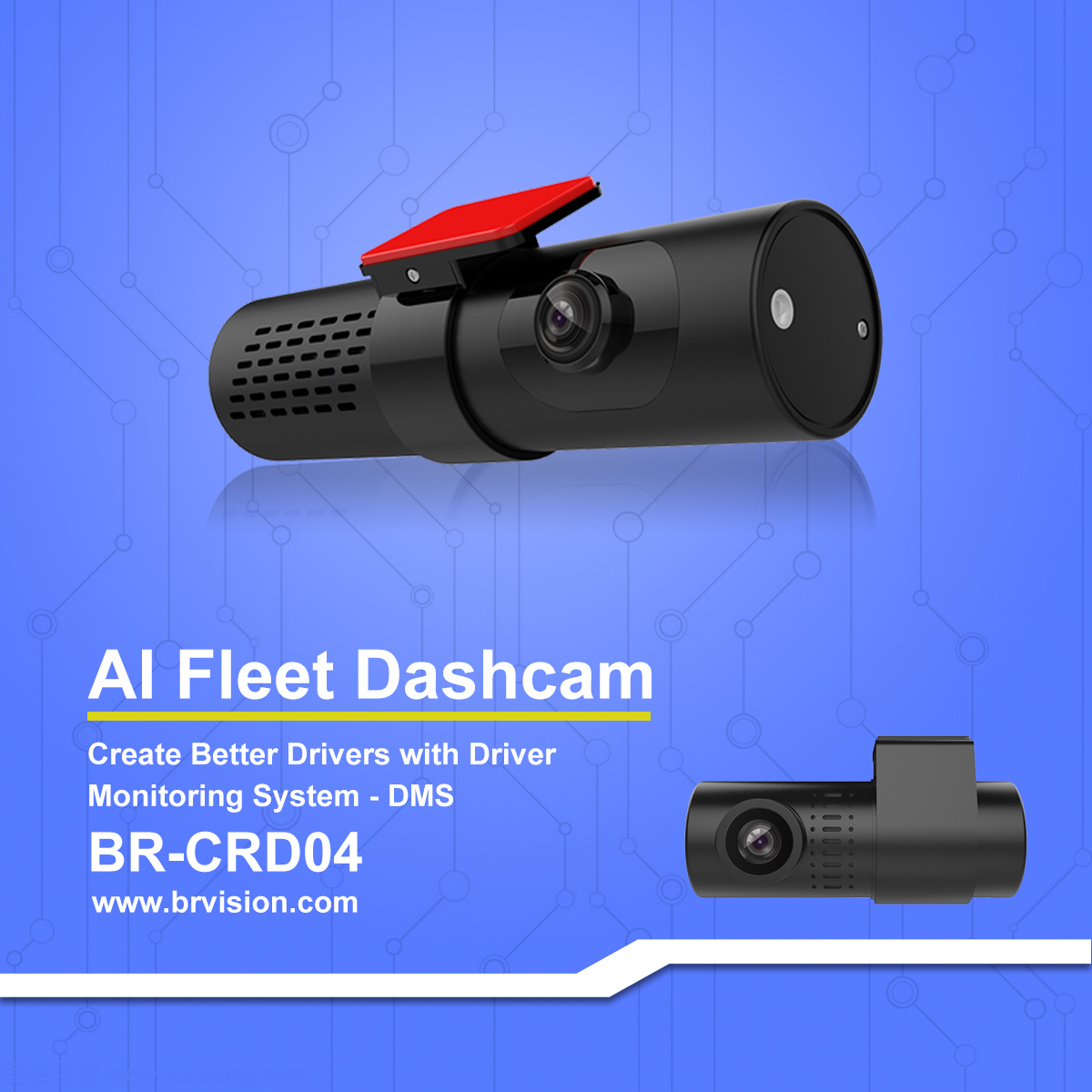

AI Dash Cams with ADAS and DMS BR-CRD04
Our commercial dashcam captures everything that is happening inside and outside the vehicle, which you can view from mobile app or management platform anytime. The Advanced Driving Assistance System of AI dashcam can help you avoid collisions and accidents by offering alerts to potential problems. Driver Monitoring System corrects risky behaviors such as phone use, smoking, fatigue driving and inattentive driving in real time before accidents happen. Improve safety, protect your fleet with AI dash cameras!
|
Technical Index |
Parameters |
|
Size/Weight/Color |
L143mm*H46mm*ø38mm / 144g /black |
|
CPU |
Dual-core 64-bit A53, 1.2GHz,NPU |
|
Running Memory |
512MB |
|
Storage Space |
256MB |
|
Photosensitive Element |
Forward：4MP pixels，CMOS，6 All-glass lenses In-cabin：2MP pixels，CMOS，6 All-glass lenses |
|
Video Input |
Maximum 3 channel; Forward channel: 2K， other 2 channels:1080P |
|
Resolution/Frame rate |
Forward：2560*1440@30fp，In-cabin：1920*1080@30fps， External：1920*1080@30fps |
|
Lens angle |
Forward lens：FOV：133.8°(H: 112.8°, V: 59.8°) In-cabin lens：FOV：151°(H: 125°, V: 65°) |
|
4G |
Overseas version： LTE-FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM/EDGE: B3/B8 |
|
WiFi |
Built-in WiFi module(IEEE 802.11b/g/n, 2.412 GHz-2.4835 GHz) |
|
Sound recording |
Built-in Microphone |
|
Storage |
TF high-speed memory card(Maximum support 256G storage,make sure to use CLASS10 and above original genuine card) |
|
Speaker |
Built in speaker |
|
Button |
Power button;Reset button |
|
LED |
2 LED(Red/Blue) |
|
G-Sensor |
Built-in 3-Axis G-Sensor |
|
GPS |
Support GPS/Beidou/GLONASS |
|
RTC |
Automatically synchronize the time through the network or GPS timing, built-in battery, the time will not be lost when the power is cut off |
|
Video output |
Mini HDMI and CVBS output |
|
Communication interface |
Reserved UART/IR interface |
|
Alarm I/O |
Reserved one alarm input;reserved one alarm output |
|
Lock |
with lock to protect the card, tamper-proof |
|
Operating voltage |
12V( 9~18V);24V (9~36V) |
|
Static power |
7W(Maximum) |
|
Stand-by current |
Less than 10mA |
|
Good performance temperature |
-25°C to 65°C |
|
Operating temperature |
-30°C to 70±5°C |
|
Storage temperature |
-30°C to +80°C |
|
Function |
Description |
|
Recording mode |
Normal Recording Event Recording Parking Recording( After the vehicle is turned off,parking guard function is activated,and it starts recording when the vehicle vibrated.) |
|
Resolution |
Support set up;forward:1440P/1080P；backward：1080P |
|
Format(video;audio) |
Video: H.264/H.265;MP4;Audio: AAC |
|
Parking guard |
After the vehicle is turned off,parking guard function is activated,and it starts recording when the vehicle vibrated. |
|
ADAS |
FCW、HMW、PCW、LDW(optional) |
|
Communication protocol |
Support JT-808 |
|
WIFI |
AP mode supports mobile APP connection to achieve parameter setting and query, video viewing, and ADAS calibration |
|
Alarm |
Support one-click alarm and alarm output |
|
Language |
English |
|
Photo |
Supports capture in JPG format |
|
Loop recording mode |
1/2/3 minutes optional |
|
Upgrade interface |
SD card upgraded(Insert the TF card to upgrade automatically) |
DOWNLOAD CENTER
PICTURE CENTER
lSupport WiFi, 4G, GPS and G-Sensor
lImprove safety with ADAS and DMS
lRecord driving routes and driver behaviors
lSave video evidence of collisions against false claims
lUse video to support driver coaching and training
lAPP and CMSV6 platform remote monitoring
You can swipe the picture on the right to see the specific function.
VIDEO CENTER
4G AI Dashcam with ADAS and DMS
ANSWER CENTER
- 1. What is the chipset you use?sigmastar 8838G + EC25(Qualcomm)
- 2. Can you list all events that can be detected for both ADAS and DMS?ADAS: FCW,HMW，VB，SAG，PCW，LDW DMS：fatigue driving，distracted driving，camera covering and blocking
- 3. Is there any ouput and does every event in adas dms can be linked to the ouput?Not supported.
- 4. Is there any standard gps function like over speeding, HA, HB and cornering?Yes, but currently not implemented, this fuction is under development.
- 5. What kind of application that is compatible with this device? like CMS?CMS platform is OK. If other platform, you could use platform API. We modify the software to connect it.
- 6. Is this kind of DVR is also equipped with LTE modem?Yes.Below is our 4G brand. LTE-FDD: B1/B3/B5/B7/B8/B20 | LTE-TDD: B38/B40/B41 | WCDMA: B1/B5/B8 | GSM/EDGE: B3/B8 |
- 7. Please explain more details about DMS and It appears as a separate camera?Yes,there’s a separate camera working for DMS function,which is facing directly to the driver. Our DMS function now includes fatigue warning,inattention warning,no face warning,phone using warning and smoking warning
- 8. Can this be used on a forklift?Yes,it support 9-36V power input and comes with 3M installation.It’s suitable and easy installation for most kinds of vehicles.
