BR-RVC16W&BR-WTR1 2.4G Digital Signal Wireless Camera System
2.4G digital signal system with wireless transmitter and wireless receiver. It is without delay and interference.With IP69K rating, our metal constructed cameras are durable and especially suits commercial and industrial vehicles. It is easy to install and no drilling necessary!
|
Item |
BR-WTR1-4-RX |
|
RF working frequency |
2.4-2.4835G |
|
RF Modulation Mode |
QPSK MD301RE，16QAM MD301SE/AV |
|
Antenna Impedance |
50ohm |
|
Signal transmission distance |
100M |
|
Video signal format type |
CVBS |
|
P/N system resolution |
720x576（NTSC）/720x480（PAL） |
|
Video frame |
30fps/25fps |
|
Video Output |
1.0vp-p，75ohm |
|
Video SNR S/N |
50dB |
|
Audio Output |
1.0±0.2Vp-p，10Kohm |
|
Audio SNR S/N |
58dB |
|
Voltage input |
DC 12-24V |
|
Power |
2.4W |
|
Waterproof grade |
IP69 |
|
.Vibration Rate |
10G |
|
Operation Temperature |
-30℃-70℃.RH95%Max |
|
Storage Temperature |
-30℃-70℃.RH95%Max |
DOWNLOAD CENTER
PICTURE CENTER

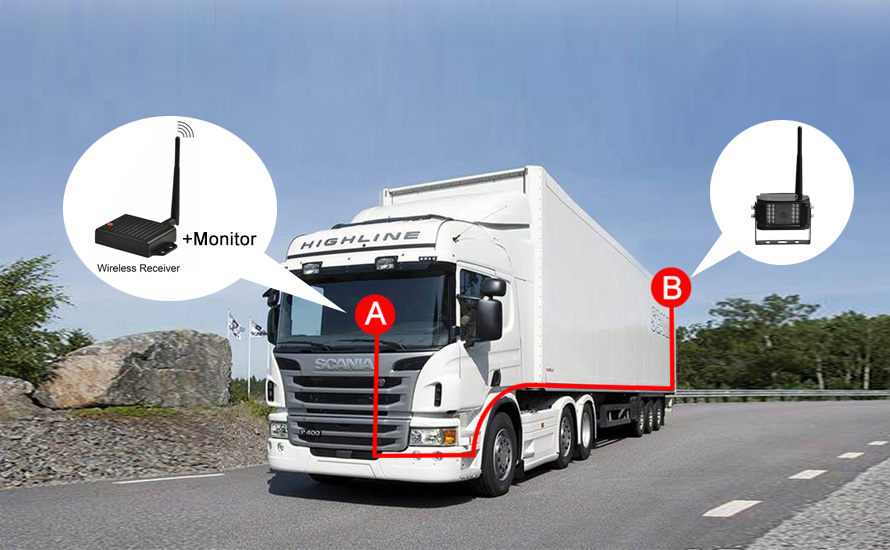

Digital wireless camera matches 2.4G digital CVBS signal wireless receiver, reliable and shockproof. It is used for car, truck, forklifts, farming vehicles, excavators and agriculture vehicles. Its operation temperature is -10℃~+60℃. It can work well day and night.
VIDEO CENTER
ANSWER CENTER
- 1. Do you provide instructions?We put a paper manual in the product packaging box. If lost, please search our product model directly and download the product manual on the product page.
- 2. Can I install this product?Many people can easily install our products without hiring help.
- 3. Is the quality of this product reliable?All of our products have been strictly inspected, including high and low temperature test, anti-vibration test, aging test and so on. CE, FCC, E-MARK, ISO, RoHS and ATF16949 are available.
- 4. Can I customize the system?Yes, most of our systems are customizable and all components in our wired system can be interchanged. For customized orders, please call (86) 13823705446.
