BR-502WS 5
BR-502WS 5" digital signal wireless camera system with 2 channel inputs. The system has built-in transmitter and receiver. It is without delay and interference. After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle, which save labor cost and efficiency.
|
Monitor Specification
|
|
|
.Screen size |
5.6’ TFT panel |
|
.Aspect Ratio |
4:3 image |
|
. Input |
1-channelvideo input |
|
.System |
PAL and NTSC auto switching |
|
.Resolution |
800 x R.G.B x 480 |
|
.Brightness |
200cd/m2 |
|
. Power supply |
12-24V DC |
|
.Operation Temperature |
-30℃~+70℃.RH95% Max |
|
Camera Specifications |
|
|
Image Sensor |
1/3 CMOS |
|
TV System |
NTSC/PAL |
|
Vibration Rate |
10G |
|
Min IIIumination |
0.1Lux@(F1.2,AGC ON);0Lux With IR |
|
Electronic Shutter |
Auto PAL 1/50s(NTSC 1/60s)~1/100,000s |
|
Signal to Noise ratio |
Better than 48dB |
|
Focus |
2.8mm |
|
F.O.V |
120° (D)、95°（H）、70°（V） |
|
BacklightCompensation |
Auto |
|
Resolution |
700TVL |
|
Ir LED |
20pcs |
|
Power Supply |
DC+12~+24V |
|
Operating Temperature |
-30℃~80℃ |
|
IP Rating |
IP69 |
DOWNLOAD CENTER
PICTURE CENTER

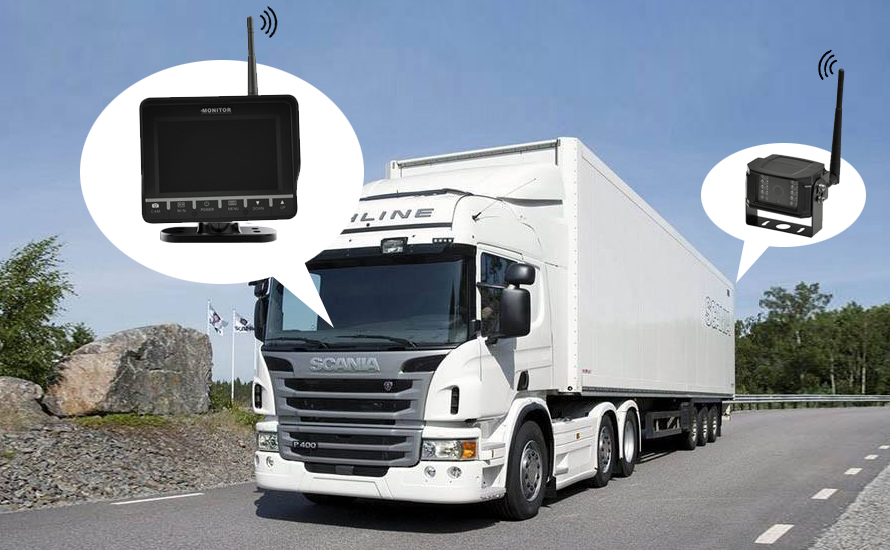

BR-502WS BRvision 5 inch 2.4G digital signal wireless system support 1 channel video input, reliable and shockproof. It is used for car, truck, forklifts, farming vehicles, excavators and agriculture vehicles. The monitor can be installed in the vehicle. Its operation temperature is -30℃~+70℃. The screen is clear, which can help drivers drive safely because they can see every angle of the image. It can work well day and night.
VIDEO CENTER
ANSWER CENTER
- 1. Do you provide instructions？We put a paper manual in the product packaging box. If lost, please search our product model directly and download the product manual on the product page.
- 2. Can I install this product？Many people can easily install our products without hiring help.
- 3. Is the quality of this product reliable?All of our products have been strictly inspected, including high and low temperature test, anti-vibration test, aging test and so on. CE, FCC, E-MARK, ISO, RoHS and ATF16949 are available.
- 4. Can I customize the system?Yes, most of our systems are customizable and all components in our wired system can be interchanged. For customized orders, please call (86) 13823705446.
