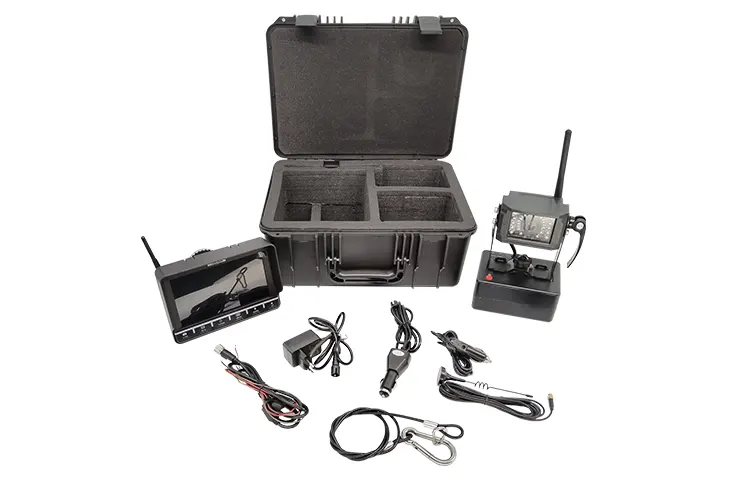

BR-704WS-BM Wireless Camera System with Rechargeable Battery and Magnetic Mount
BR-704WS-BM This 7" AHD wireless system supports 4 cameras recording at most without delay and interference. It has unique design and private moulding. With a rechargeable magnetic mount, the camera is easier to install, no drilling necessary! It is completely waterproof with an IP69K rating, strong and reliable. With AHD signal, the system can provide the driver with a very clear image whether it is day or night.
Real-time live vehicle closed-circuit television system
|
Item No. |
BR-704WS-BM |
|
Monitor |
7 inch new TFT panel |
|
camera |
wireless digital camera with battery and magnetic mount |
|
Resolution |
800*480*RGB |
|
Working hours |
13 hours(10200 mAh ) |
|
System |
PAL/NTSC automatically |
|
Audio and video |
2 video/1audio input Quad images,2/3/4 image optional |
|
OSD menu |
Language,brightness, contrast, trigger priority delay display setting |
|
Luminance |
450cd/m2 |
|
Function |
Without drilling, available for all kinds of vehicles |
|
Image Type |
CMOS/CCD for option |
|
Horizontal Resolution |
700TV Lines |
|
Shockproof |
10G |
|
Certificate |
FCC,CE, E-mark，ISO9001,TS16949, RoHs |
|
Warranty |
|
|
Operating temperature |
-10ºC to +60ºC |
DOWNLOAD CENTER
PICTURE CENTER
BR-704WS-BM Digital wireless camera with battery and magnetic mount matches 7”digital wireless signal monitor. The monitor supports 2 channel video inputs, reliable and shockproof .It is used for car, truck, forklifts, farming vehicles, excavators and agriculture vehicles. The monitor can be installed in the vehicle. Its operation temperature is -10℃~+60℃. The screen can automatically switch when reversing, which can help drivers drive safely because they can see every angle of the image. It can work well day and night.
VIDEO CENTER
ANSWER CENTER
- 1. Do you provide instructions？We put a paper manual in the product packaging box. If lost, please search our product model directly and download the product manual on the product page.
- 2. Can I install this product？Many people can easily install our products without hiring help. Click here to search for recommended installations in your region.
- 3. Is the quality of this product reliable?All of our products have been strictly inspected, including high and low temperature test, anti-vibration test, aging test and so on. CE, FCC, E-MARK, ISO, RoHS and ATF16949 are available.
- 4. Is the image on the screen clear?Yes, our monitor comes with high resolution and brightness.
