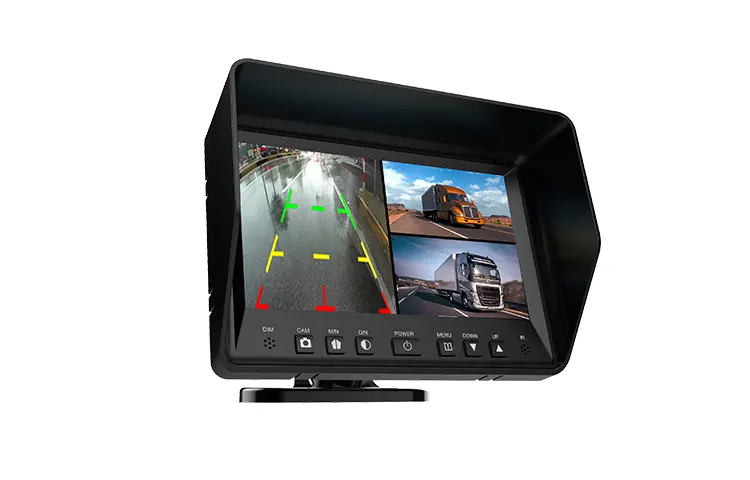

BR-TMQ7001-3 7" LCD Monitor with 3 Camera Inputs
This 7" LCD monitor supports three camera inputs with three trigger cables. With adjustable quad screen, multiple views are optional. It comes with a 4P lock connector and 13 months warranty. The power input is 12-36V. It comes with high resolution of 1080p and high brightness of 520cd. This commercial grade monitor is the clearest and greatest monitor available on the market today.
|
MODEL |
BR-TMQ7001-3 |
|
Screen size |
7“ IPS Super TFT panel |
|
Aspect Ratio |
16:9 image |
|
Video Input |
3channels Splid（CVBS/AHD720P/1080P） |
|
Audio Input |
3 Channels |
|
Speaker |
1 Channel(Options) |
|
Trigger |
3 channels |
|
Resolution |
1024 x 3(RGB) x 600 |
|
Brightness |
520cd/m2 |
|
Contrast radio |
700:1 |
|
Viewing Angle |
H:85 V:85 |
|
External Dimensions |
188.3*132.1*80.2mm (W)*(H)* (T) |
|
Operating Voltage |
12-36V DC |
|
Power |
2.6W(No cameras) |
|
Operation Temperature: |
-40℃~+80℃.RH95% Max |
|
Storage Temperature: |
-45℃~+90℃.RH95% Max |
|
Waterproof |
IP65 |
|
Options |
Speaker，remote control |
DOWNLOAD CENTER
PICTURE CENTER
This 7" split screen monitor supports 3 channel video inputs. It is suitable for your car, truck, VAN, RV, bus monitoring. It can be installed in the truck or car. Its operation temperature is -30℃~+70℃. The screen can automatically switch when reversing, which can help drivers drive safely because they can see every angle of the image. It can work well day and night.
