BR-TM7001-WB

This 7" TFT monitor supports two camera inputs with two trigger cables. It is completely waterproof with an IP69K rating, strong and reliable. It comes with high brightness of 500cd. It has unique design and high resolution. This product has been strictly inspected including high and low temperature test, anti-vibration test and aging test and so on. CE, E-mark, FCC, ATF16949 are available.

All Truck Monitor Contact us

MODEL	BR-TM7001-WB
Screen size	7“ TFT panel
Aspect Ratio	16:9 image
Video Input	1 channels（CVBS）
Audio Input	N/A
Speaker	N/A
Trigger	1 channels
Resolution	800 x 3(RGB) x 480
Brightness	500cd/m2
Contrast radio	500:1
Viewing Angle	H:75 V:75
External Dimensions	188155124mm (W)(H) (T)
Operating Voltage	12-36V DC
Power	N/A(No cameras)
Operation Temperature:	-30℃~+85℃.RH95% Max
Storage Temperature:	-40℃~+90℃.RH95% Max
Waterproof	IP69K
Options	N/A

All Truck Monitor Contact us

DOWNLOAD CENTER

BR-TM7001-WB Specification

BR-TM7001-WB 2D drawing

Download more

PICTURE CENTER

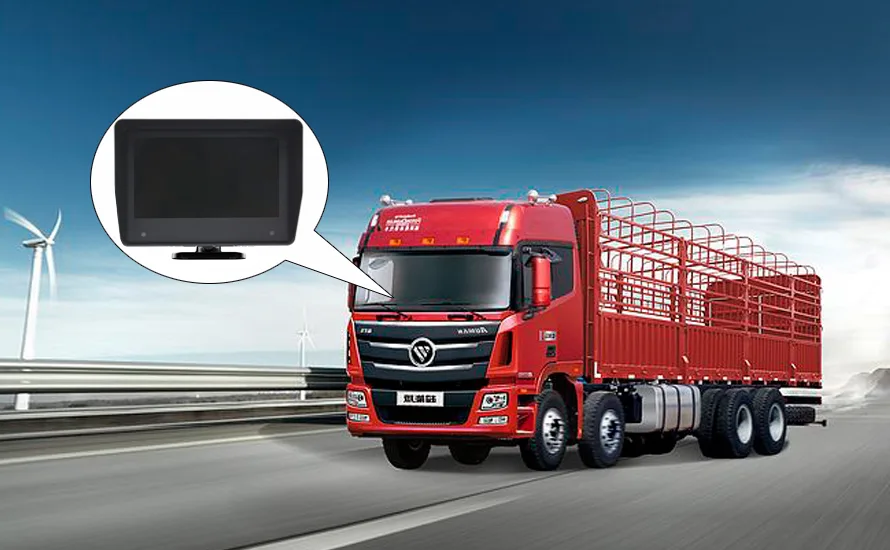

7" TFT Digital monitor support 1/2 channels Video input，strong and shockproof. Operating via remote/speaker control, It is suitable for car or truck monitoring. It can be installed in the truck or car. Its operation temperature is -30℃~+85℃. The screen can automatically switch when reversing, which can help drivers drive safely because they can see every angle of the image. It can work well day and night.
