BR-704WP IP69K waterproof 7 inch monitor

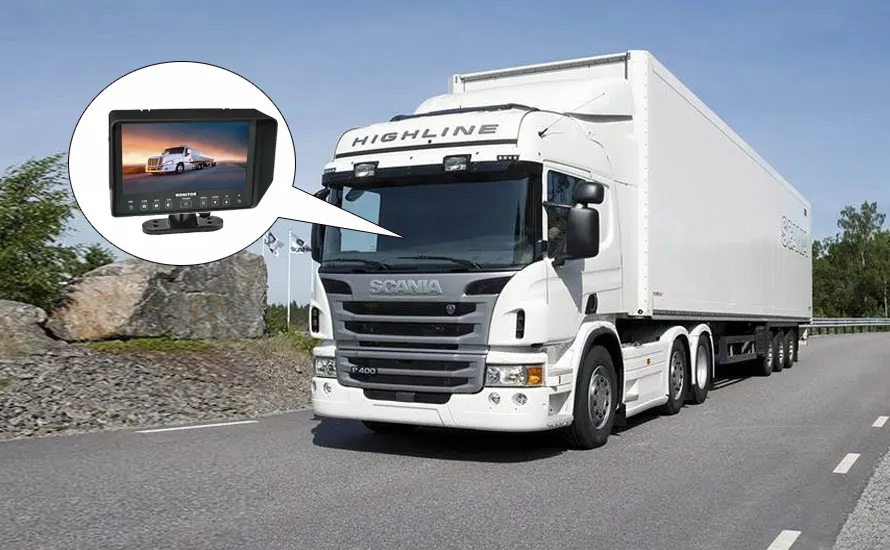

This 7" waterproof monitor supports 4 camera inputs with 4 trigger cables. Multiple kinds of cameras are optional. The screen can automatically switch when reversing, which can help drivers drive safely.
It is completely waterproof with an IP69K rating, strong and reliable. With a waterproof screen, working outdoors is possible.
|
MODEL |
BR-TM704WP |
|
Screen size |
7“ IPS Super TFT panel |
|
Aspect Ratio |
16:9 image |
|
Video Input |
4 channels（CVBS/AH720P/AHD1080P） |
|
Audio Input |
4 Channels |
|
Speaker |
1 Channel(Options) |
|
Trigger |
4 channels |
|
Resolution |
1024 x 3(RGB) x 600 |
|
Brightness |
520cd/m2 |
|
Contrast radio |
700:1 |
|
Viewing Angle |
H:85 V:85 |
|
External Dimensions |
188.3*132*68.5mm (W)*(H)* (T) |
|
Operating Voltage |
12-36V DC |
|
Power |
N/A(No cameras) |
|
Operation Temperature: |
-30℃~+85℃.RH95% Max |
|
Storage Temperature: |
-40℃~+90℃.RH95% Max |
|
Waterproof |
IP69K |
|
Options |
Speaker，remote control |
DOWNLOAD CENTER
PICTURE CENTER
This 7-inch waterproof monitor supports 4 camera inputs, 4 trigger lines, and the screen switches automatically when reversing to help drivers drive safely.
The waterproof grade can reach IP69K, which is suitable for various extreme environments and is sturdy and reliable.
The waterproof grade can reach IP69K, which is suitable for various extreme environments and is sturdy and reliable.
