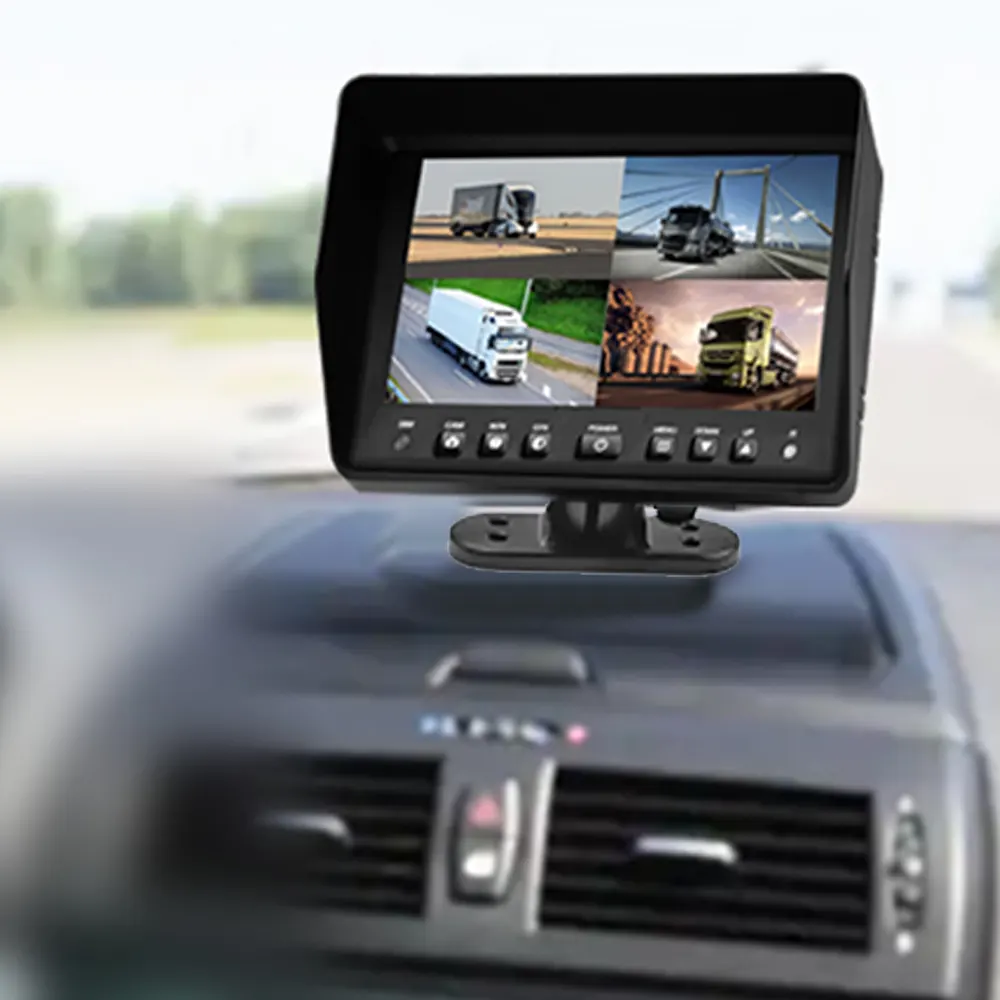

BR-TMQ7001 7” quad monitor with 4-cam input
This 7" quad digital monitor supports 4 camera inputs. All kinds of camera are suitable. With LCD panel, you can see the image at any angle. It comes with high resolution of 720P and high brightness of 520cd. With adjustable quad screen, multiple views are optional. It’s easy to master with remote control and adjustable fan-shaped bracket.
|
MODEL |
BR-TMQ7001 |
|
Screen size |
7“ IPS Super TFT panel |
|
Aspect Ratio |
16:9 image |
|
Video Input |
4 channels Splid（CVBS/AHD720P/1080P） |
|
Audio Input |
4 Channels |
|
Speaker |
1 Channel(Options) |
|
Trigger |
4 channels |
|
Resolution |
1024 x 3(RGB) x 600 |
|
Brightness |
520cd/m2 |
|
Contrast radio |
700:1 |
|
Viewing Angle |
H:85 V:85 |
|
External Dimensions |
188.3*132.1*80.2mm (W)*(H)* (T) |
|
Operating Voltage |
12-36V DC |
|
Power |
2.6W(No cameras) |
|
Operation Temperature: |
-30℃~+85℃.RH95% Max |
|
Storage Temperature: |
-40℃~+90℃.RH95% Max |
|
Waterproof |
IP65 |
|
Options |
Speaker，remote control |
DOWNLOAD CENTER
PICTURE CENTER
7 Inch Quad Split High Brightness Monitor support 4 channel video inputs,strong and shockproof. It is suitable for car or truck monitoring. It can be installed in the truck or car. Its operation temperature is -30℃~+85℃. The screen can automatically switch when reversing, which can help drivers drive safely because they can see every angle of the image. It can work well day and night.
