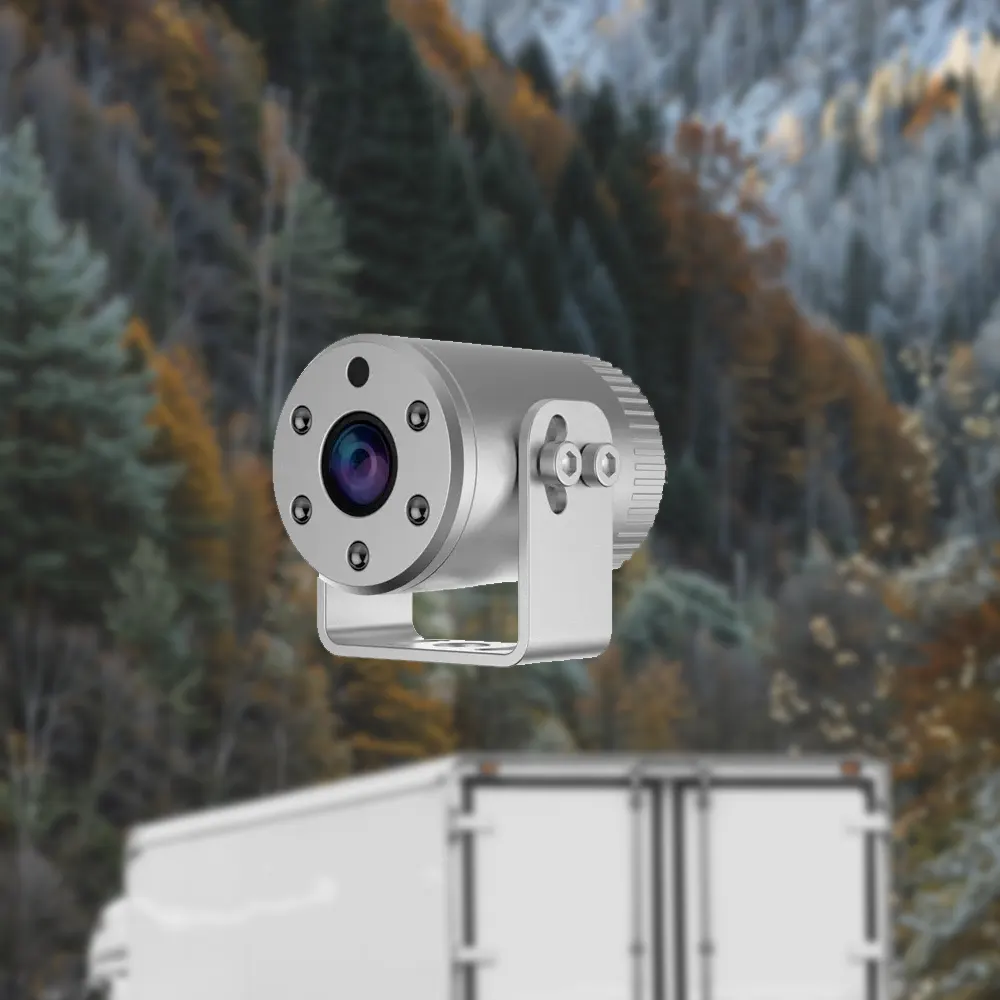

BR-MNC06-S stainless steel camera
This mini camera has a silver robust stainless steel housing. It is highly resistant to salt water, acid rain and corrosive chemicals. The waterproof rating is IP69K. It has wide angle in 180 degrees, 160 degree for optiona. Its power input is 9-36V, so it can be applied to more vehicles. 4pin lock connector, customized connector is also offered.
|
Model |
BR-MNC06-S |
|
|
Camera |
Sensor |
1/2.9 CMOS |
|
TV System |
NTSC/PAL |
|
|
Camera Ir LED |
5 Pcs |
|
|
Min IIIumination |
0.1Lux@(F1.2,AGC ON); |
|
|
Electronic Shutter |
Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s |
|
|
Focus |
1.78mm |
|
|
Lens Interface |
M12 |
|
|
F.O.V |
180° (D)、160°（H）、93°（V） |
|
|
Backlight Compensation |
Auto |
|
|
Resolution |
CVBS(700TVL) AHD(720P 1080P) |
|
|
Signal to Noise ratio |
Better than 48dB |
|
|
Interface |
Connect |
4 Pin Aviation Female Interface |
|
Video Output |
1Vp-p Composite Output(75Ω) |
|
|
Audio Input |
None |
|
|
Audio Output |
None |
|
|
General |
Material |
Metal(Stainless steel) |
|
Operating Temperature |
-30℃~80℃ |
|
|
Usage |
For passenger vehicles |
|
|
Operating Voltage |
DC9-36V±10%(or From Reversing Monitor DC12V) |
|
|
Power |
|
|
|
Waterproof |
IP69K |
|
|
External Dimensions |
27.9*38mm（D*L) |
|
|
Weight Approx |
128g |
|
DOWNLOAD CENTER
PICTURE CENTER
The rearview camera has a compact design, which is suitable for all types of vehicles. The camera is usually mounted on the license plate at the rear of the vehicle and has a wide 160 or180 degree view of sight. Ideal rear-view camera: waterproof coefficient is 69, maximum and minimum temperature power is -30℃~80℃. Whether sunny or rainy, hot or cold, the car’s backup camera will give you good service day and night.
