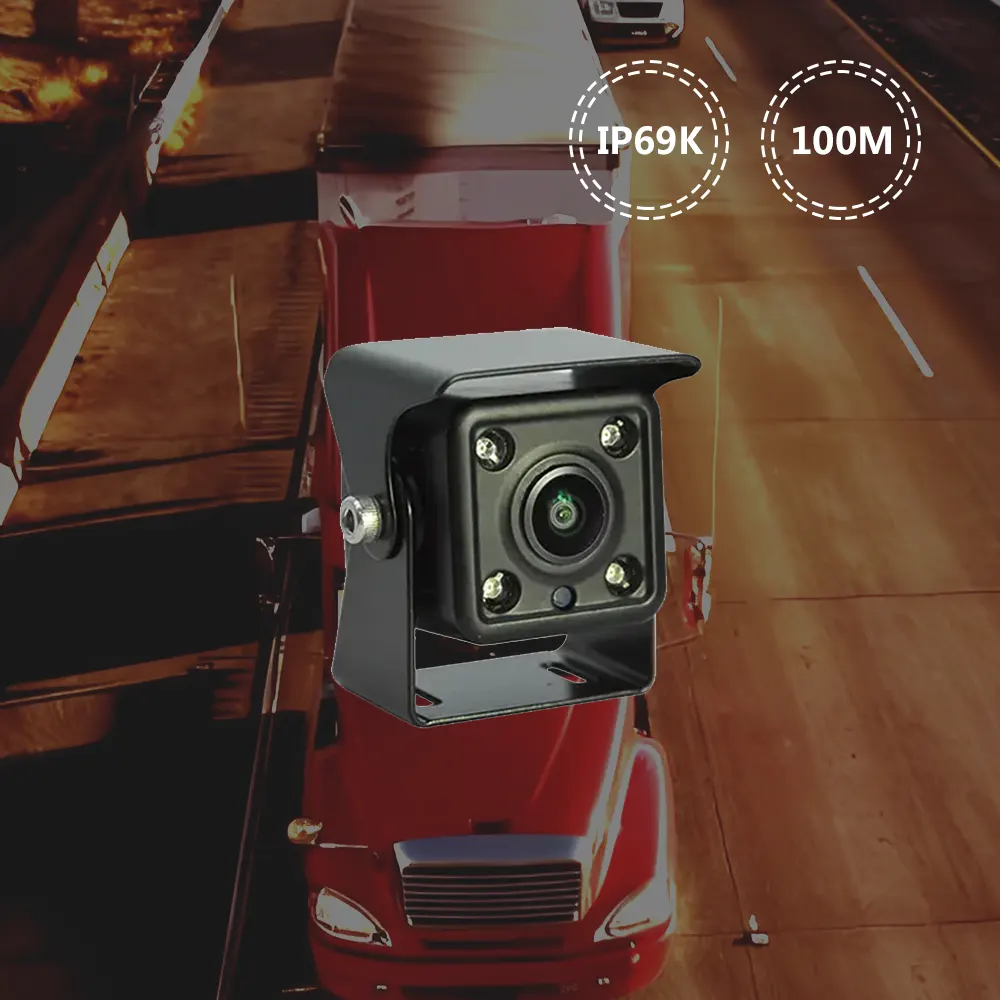

BR-RVC06-N Compact Super Metal Camera.
This camera with robust stainless housing has wide angle in 142 degrees. 720P and CVBS are optional. The waterproof rating is IP69K. It is popular in Europe and North American countries.This camera is installed stably, anti-glare and shock-proof.
|
Model |
BR-RVC06-N |
|
|
Camera |
Sensor |
1/3 CMOS |
|
TV System |
NTSC/PAL |
|
|
Camera Ir LED |
4pcs |
|
|
Min IIIumination |
1Lux@(F1.2,AGC ON); |
|
|
Electronic Shutter |
Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s |
|
|
Focus |
2.46mm |
|
|
Lens Interface |
M12 |
|
|
F.O.V |
142° (D)、110°（H）、83°（V） |
|
|
Backlight Compensation |
Auto |
|
|
Resolution |
700TVL(AHD 720P) |
|
|
Signal to Noise ratio |
Better than 48dB |
|
|
Interface |
Connect |
4 Pin Aviation Female Interface |
|
Video Output |
1Vp-p Composite Output(75Ω) |
|
|
Audio Input |
None |
|
|
Audio Output |
None |
|
|
General |
Material |
Metal |
|
Operating Temperature |
-30℃~70℃ |
|
|
Usage |
For passenger vehicles |
|
|
Operating Voltage |
DC9-36V±10%(From Reversing Monitor DC12V) |
|
|
Power |
|
|
|
Waterproof |
IP69K |
|
|
External Dimensions |
|
|
|
Weight Approx |
|
|
DOWNLOAD CENTER
PICTURE CENTER
The compact ultra Wide Angle camera has a wide Angle of 142 degrees, providing the user with a superior line of sight. The user can adjust the vertical Angle, allowing you to adjust the camera to the best position for you. With safety monitoring performance, it is designed to eliminate blind spots and avoid obstacles when reversing. Camera provides optimal road conditions. The camera’s IP waterproof is 69, which protects it from powerful jets from anywhere, such as rain and car washes. It works well in extreme weather.
