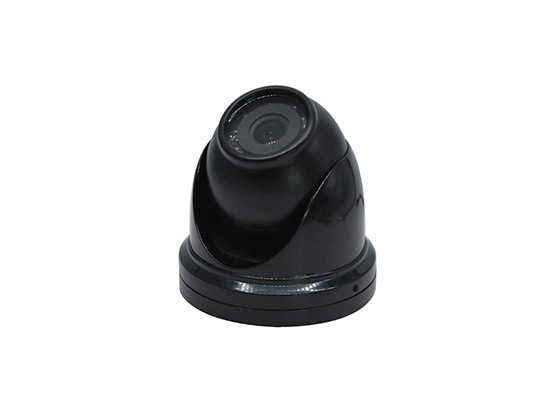

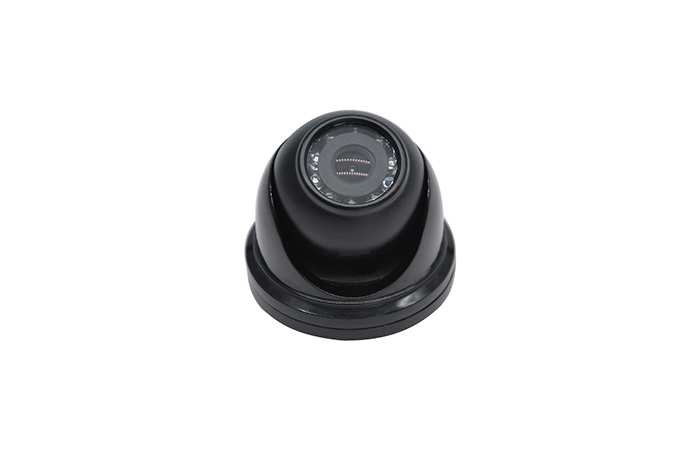

BR-RVC07-N-black Black All-in-one Camera Fish Eye Ceiling Camera
BR-RVC07-N This is an all-in-one camera. It can be used for different views and provides total solution for all vehicles. IP69K Rating- It is completely waterproof. Made with heavy duty metal, its built can withstand the worst that nature throws against it. It has a wide viewing angle of 133° and 720P for the quality image. With 9 infra-red lights, the image will stay crystal clear even in the darkest night. Ceiling camera is shock resistant with a 10G vibration and 100G shock rating (highest in the industry) and comes with a full year warranty. It is fit for all kinds of vehicles. 30/60/90/120/150/180 degree are available.
|
Model |
BR-RVC07-N-black |
|
|
Camera |
Sensor |
1/3 CMOS |
|
TV System |
NTSC/PAL |
|
|
Camera Ir LED |
9pcs IR lamp with excellent night vision |
|
|
Min IIIumination |
0.1Lux@(F1.2,AGC ON); |
|
|
Electronic Shutter |
Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s |
|
|
Focus |
2.4mm |
|
|
Lens Interface |
M12 |
|
|
F.O.V |
133° (D)、106°（H）、76°（V） |
|
|
Backlight Compensation |
Auto |
|
|
Resolution |
700TVL(AHD720P) |
|
|
Signal to Noise ratio |
Better than 48dB |
|
|
Interface |
Connect |
4 PinAviation Female Interface |
|
Video Output |
1Vp-p Composite Output(75Ω) |
|
|
Audio Input |
Options |
|
|
Audio Output |
Options |
|
|
General |
Material |
Metal |
|
Operating Temperature |
-30℃~70℃ |
|
|
Usage |
For passenger vehicles |
|
|
Operating Voltage |
DC 9-36V±10%(or From Reversing Monitor DC12V) |
|
|
Power |
|
|
|
Waterproof |
IP69K |
|
|
External Dimensions |
87*70.9*82.2mm（L*W*H) |
|
|
Weight Approx |
|
|
DOWNLOAD CENTER
PICTURE CENTER

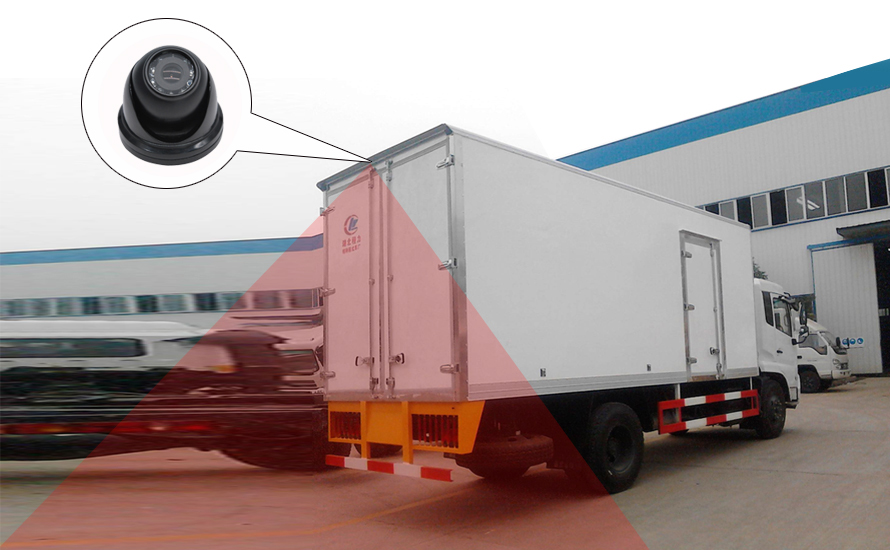

Universal rear view camera is suitable for many types of cars. With nine infrared lights and a 133-degree wide viewing Angle, the camera provides crystal clear images, beautiful night vision, and very clear video. Excellent parking camera for safe reversing and driving. With IP69K waterproof rating of the international standard astern camera, so you can use boldly
VIDEO CENTER
ANSWER CENTER
- 1. Do you provide instructions？We put a paper manual in the product packaging box. If lost, please search our product model directly and download the product manual on the product page.
- 2. Can I install this product？Many people can easily install our products without hiring help. Click here to search for recommended installations in your region.
- 3. Is the quality of this product reliable?All of our products have been strictly inspected, including water-proof test, high and low temperature test, anti-vibration test, aging test and so on. CE, FCC, E-MARK, ISO, RoHS and TS16949 are available.
- 4. Can I customize the system?Yes, most of our systems are customizable, and all components in our wired system can be interchanged. For customized orders, please call (86) 13823705446.
- 5. Is this camera waterproof?All of our cameras are completely waterproof with an IP69 rating, strong and reliable.
- 6. Does the camera work at night?Yes. Most of our cameras have infrared lights and excellent night vision.
