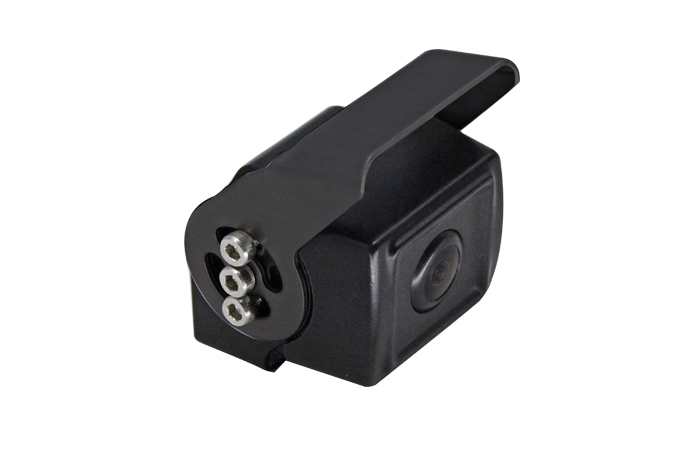

1080/720HD IP69K Waterproof Compact Mini Camera For Car,Truck BR-RVC06
BR-RVC06 Compact Super Wide Angle Camera. This camera with robust stainless housing has a wide angle in 170 degrees. 720P and 1080P are optional. The waterproof rating is IP69K. It is popular in Europe and North American countries. This camera is installed stably, anti-glare and shock-proof. With a high quality image, this backup camera will be fit for all your commercial and construction needs.
|
Model |
BR-RVC06 |
|
|
Camera |
Sensor |
1/3 CMOS |
|
|
TV System |
NTSC/PAL |
|
|
Camera Ir LED |
None |
|
|
Min IIIumination |
0.1Lux@(F1.2,AGC ON); |
|
|
Electronic Shutter |
Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s |
|
|
Focus |
2.4mm |
|
|
Lens Interface |
M12 |
|
|
F.O.V |
133° (D)、106°（H）、76°（V） |
|
|
Backlight Compensation |
Auto |
|
|
Resolution |
700TVL(AHD720P) |
|
|
Signal to Noise ratio |
Better than 48dB |
|
Interface |
Connect |
4 PinAviation Female Interface |
|
|
Video Output |
1Vp-p Composite Output(75Ω) |
|
|
Audio Input |
NONE |
|
|
Audio Output |
NONE |
|
General |
Material |
Metal |
|
|
Operating Temperature |
-30℃~70℃ |
|
|
Usage |
For passenger vehicles |
|
|
Operating Voltage |
DC 9-36V±10%(or From Reversing Monitor DC12V) |
|
|
Power |
|
|
|
Waterproof |
IP69K |
|
|
External Dimensions |
38.5*36.4*35.5mm(L*W*H) |
|
|
Weight Approx |
|
DOWNLOAD CENTER
PICTURE CENTER
The compact ultra Wide Angle camera has a wide Angle of 170 degrees, providing the user with a superior line of sight. The user can adjust the vertical Angle, allowing you to adjust the camera to the best position for you. With safety monitoring performance, it is designed to eliminate blind spots and avoid obstacles when reversing. Camera provides optimal road conditions. The camera’s IP waterproof is 69, which protects it from powerful jets from anywhere, such as rain and car washes. It works well in extreme weather.
VIDEO CENTER
ANSWER CENTER
- 1. Do you provide instructions？We put a paper manual in the product packaging box. If lost, please search our product model directly and download the product manual on the product page.
- 2. Can I install this product?Many people can easily install our products without hiring help. Click here to search for recommended installations in your region.
- 3. Is the quality of this product reliable?All of our products have been strictly inspected, including water-proof test, high and low temperature test, anti-vibration test, aging test and so on. CE, FCC, E-MARK, ISO, RoHS and TS16949 are available.
- 4. Can I customize the system?Yes, most of our systems are customizable, and all components in our wired system can be interchanged. For customized orders, please call (86) 13823705446.
- 5. Is this camera waterproof?All of our cameras are completely waterproof with an IP69 rating, strong and reliable.
- 6. How long is the warranty?All of our products comes with 13 months warranty.
