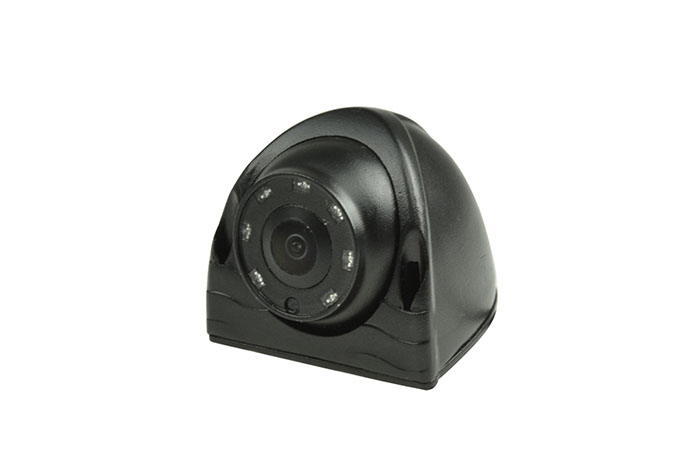

170° 720P Waterproof IP69K Night View Camera For Truck BR-RVC08-M2
BR-RVC08-M2 This camera with robust stainless housing has wide angle in 170 degrees. It has night vision with IR lighting. 720P and 1080P are optional. The waterproof rating is IP69K. This mini camera with microphone can be applied for trucks, buses, forklifts, harvesters, etc. Metal Shell inSide Camera compact camera. This 170 degree angle side camera is the clearest and greatest camera available on the market today. The casing of the camera has a IP69 rating which can withstand all weather conditions.
|
Model |
BR-RVC08-M2 |
|
|
Camera |
Sensor |
1/3 CMOS |
|
|
TV System |
NTSC/PAL |
|
|
Camera Ir LED |
7pcs IR lamp with excellent night vision |
|
|
Min IIIumination |
0.1Lux@(F1.2,AGC ON); |
|
|
Electronic Shutter |
Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s |
|
|
Focus |
2.14mm |
|
|
Lens Interface |
M12 |
|
|
F.O.V |
133° (D)、106°（H）、76°（V） |
|
|
Backlight Compensation |
Auto |
|
|
Resolution |
700TVL(AHD720P) |
|
|
Signal to Noise ratio |
Better than 48dB |
|
Interface |
Connect |
4 PinAviation Female Interface |
|
|
Video Output |
1Vp-p Composite Output(75Ω) |
|
|
Audio Input |
NONE |
|
|
Audio Output |
NONE |
|
General |
Material |
Metal |
|
|
Operating Temperature |
-30℃~70℃ |
|
|
Usage |
For passenger vehicles |
|
|
Operating Voltage |
DC 9-36V±10%(or From Reversing Monitor DC12V) |
|
|
Power |
|
|
|
Waterproof |
IP69K |
|
|
External Dimensions |
50.6*44.6*41.1mm(L*W*H) |
|
|
Weight Approx |
|
DOWNLOAD CENTER
PICTURE CENTER

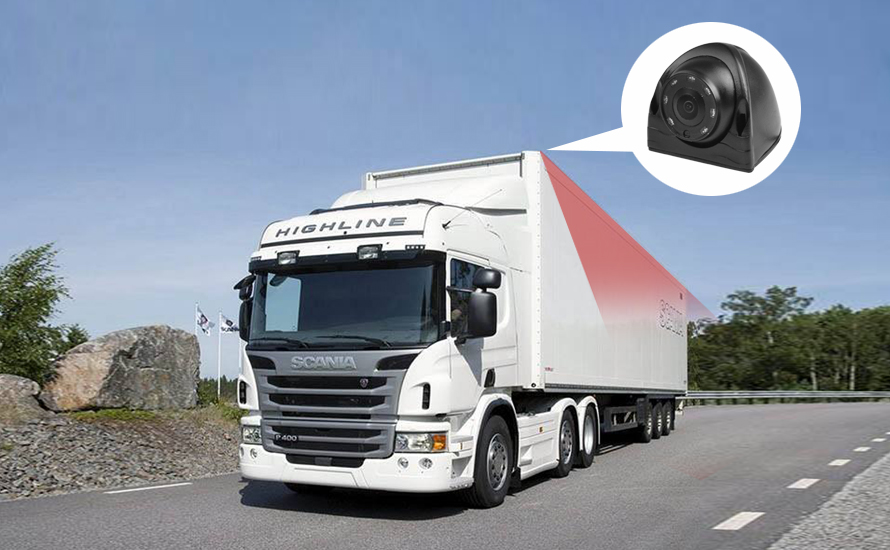

The side-view camera can be mounted on the top and side of the car. With safety monitoring performance, it is designed to eliminate blind spots and avoid obstacles when reversing, which provides optimal road conditions. Even in extremely dark road conditions, this camera has night vision function, which can provide the optimal solution for drivers to travel in fully safety at night. Ideal side-view camera: waterproof coefficient is 69, maximum and minimum temperature power is -30℃~70℃. Whether sunny or rainy, hot or cold, your car’s backup camera will give you good service day or night.
