Wing Mirror Arm Camera for Side View BR-RVC07-AC
BR-RVC07-AC Mirror Arm Bracket Camera. This mirror camera has night vision with IR lighting. It comes with an adjustable clamp bracket and is easy to install. 720P and 1080P are optional. The backup camera is completely waterproof with an IP69K rating. CE, E-mark, FCC, TS16949 are available. It’s viewing angle can be easily adjusted because of a variety of different installation ways. Normal and mirror image can be switched. Camera comes with 4P connector and 13 months warranty.

Model

BR-RVC07-AC

Camera

Sensor

1/3 CMOS

TV System

NTSC/PAL

Camera Ir LED

9pcs IR lamp with excellent night vision

Min IIIumination

0.1Lux@(F1.2,AGC ON);

Electronic Shutter

Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s

Focus

2.4 mm

Lens Interface

M12

F.O.V

133° (D)、106°(H)、76°(V)

Backlight Compensation

Auto

Resolution

700TVL(AHD720P)

Signal to Noise ratio

Better than 48dB

Interface

Connect

4 PinAviation Female Interface

Video Output

1Vp-p Composite Output(75Ω)

Audio Input

NONE

Audio Output

NONE

General

Material

Metal&Plastic

Operating Temperature

-30℃~70℃

Usage

For passenger vehicles

Operating Voltage

DC 9-36V±10%(or From Reversing Monitor DC12V)

Power


Waterproof

IP69K

External Dimensions

57.1*79*140.9mm(L*W*H)

Weight Approx




All Truck Camera Contact us
DOWNLOAD CENTER
PICTURE CENTER

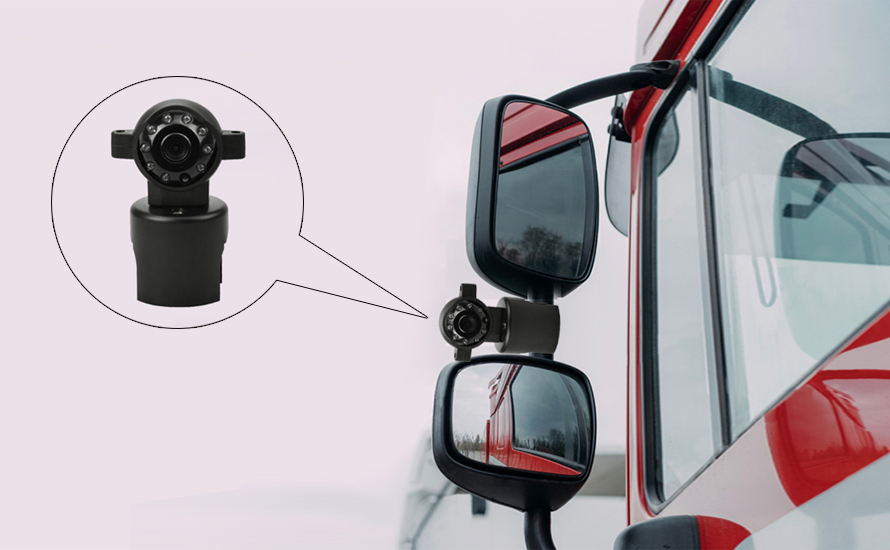

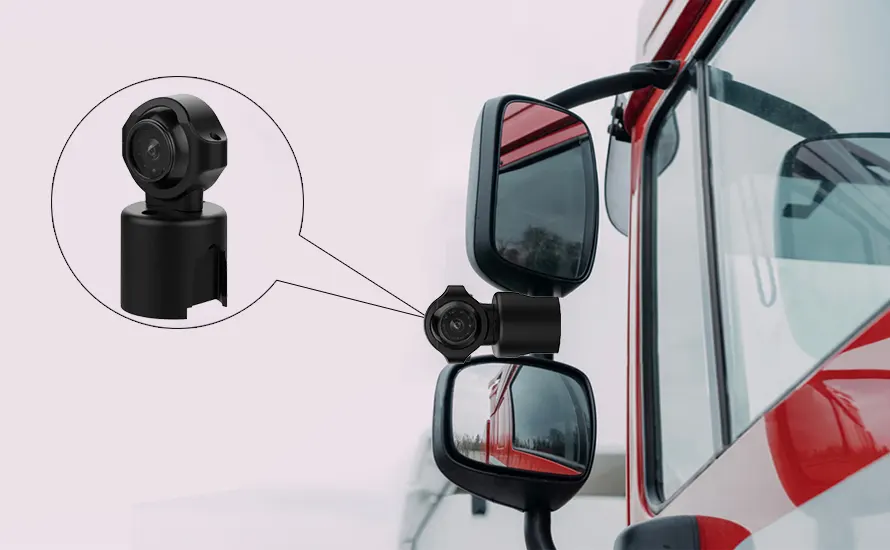

New design mirror arm frame camera. The camera can be mounted on the mirror arm of the car, which is easy to install and support angle adjustment. The camera is popular in trucks, trailers, fire trucks and other large vehicles. With night video mode, It provides users a higher camera security performance. Ultra high water resistance, IP69K, from any strong spray from anywhere, such as rain and car washing etc. It works well in extreme weather. Choose Brvision and we will provide you with satisfactory service.

VIDEO CENTER
ANSWER CENTER
  • 1. Do you provide instructions?
    We put a paper manual in the product packaging box. If lost, please search our product model directly and download the product manual on the product page.
  • 2. Can I install this product?
    Many people can easily install our products without hiring help. Click here to search for recommended installations in your region.
  • 3. Is the quality of this product reliable?
    All of our products have been strictly inspected, including water-proof test, high and low temperature test, anti-vibration test, aging test and so on. CE, FCC, E-MARK, ISO, RoHS and TS16949 are available.
  • 4. Can I customize the system?
    Yes, most of our systems are customizable, and all components in our wired system can be interchanged. For customized orders, please call (86) 13823705446.
  • 5. Is this camera waterproof?
    All of our cameras are completely waterproof with an IP69 rating, strong and reliable.
  • 6. Does the reversing camera work at night?
    Yes. Most of our cameras have infrared lights and excellent night vision.
