Side Truck Camera BR-RVC07-JC

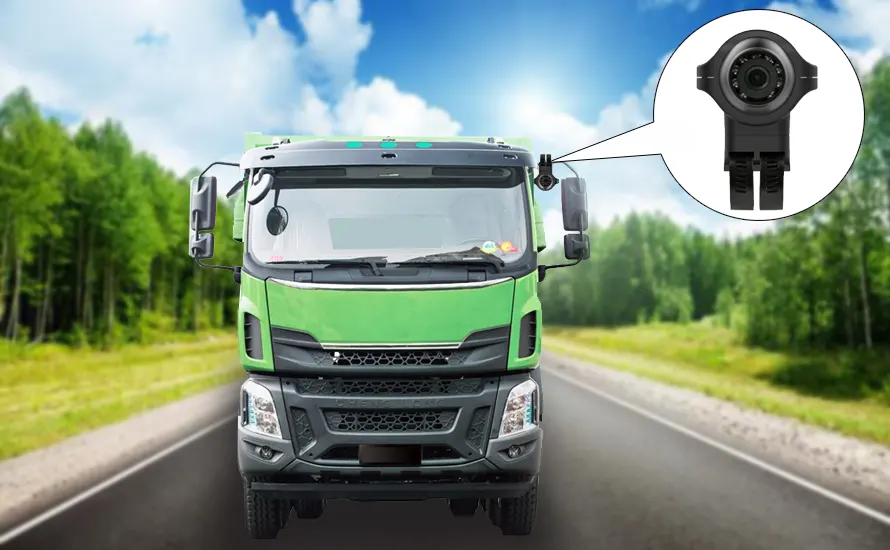

BR-RVC07-JC14 Arm Camera with Jubilee Clip. This front camera is designed to fit onto the arm bracket of your truck, no drilling necessary! It is equipped with standard 12mm ring to assist installation. The ring can also be expanded to 21-28mm. With a robust encasing and an IP69K rating, it will be fit to withstand all weather conditions. This normal image camera has a wide 120° viewing angle. With 9 infra-red lights, the image will stay crystal clear even in the darkest night.
|
Model |
BR-RVC07-JC |
|
|
Camera |
Sensor |
1/3 CMOS |
|
|
TV System |
NTSC/PAL |
|
|
Camera Ir LED |
9pcs IR lamp with excellent night vision |
|
|
Min IIIumination |
0.1Lux@(F1.2,AGC ON); |
|
|
Electronic Shutter |
Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s |
|
|
Focus |
2.4mm |
|
|
Lens Interface |
M12 |
|
|
F.O.V |
133° (D)、106°（H）、76°（V） |
|
|
Backlight Compensation |
Auto |
|
|
Resolution |
700TVL(AHD720P) |
|
|
Signal to Noise ratio |
Better than 48dB |
|
Interface |
Connect |
4 PinAviation Female Interface |
|
|
Video Output |
1Vp-p Composite Output(75Ω) |
|
|
Audio Input |
Options |
|
|
Audio Output |
Options |
|
General |
Material |
Metal&Plastic |
|
|
Operating Temperature |
-30℃~70℃ |
|
|
Usage |
For passenger vehicles |
|
|
Operating Voltage |
DC 9-36V±10%(or From Reversing Monitor DC12V) |
|
|
Power |
|
|
|
Waterproof |
IP69K |
|
|
External Dimensions |
57.1*79*140.9mm（L*W*H) |
|
|
Weight Approx |
|
DOWNLOAD CENTER
PICTURE CENTER
We produce high quality mirror arm frame camera! Our company has an independent research and development team, and is committed to provide excellent camera solutions for the safe travel of cars. The camera has an innovative design with a unique belt-like feature that allows users to adjust the camera Angle autonomously. 120 degrees wide viewing Angle, camera provides crystal clear images, beautiful night vision, with international standard IP69K waterproof rating astern camera.
VIDEO CENTER
ANSWER CENTER
- 1. Do you provide instructions？We put a paper manual in the product packaging box. If lost, please search our product model directly and download the product manual on the product page.
- 2. Can I install this product？Many people can easily install our products without hiring help. Click here to search for recommended installations in your region.
- 3. Is the quality of this product reliable?All of our products have been strictly inspected, including water-proof test, high and low temperature test, anti-vibration test, aging test and so on. CE, FCC, E-MARK, ISO, RoHS and TS16949 are available.
- 4. Can I customize the system?Yes, most of our systems are customizable, and all components in our wired system can be interchanged. For customized orders, please call (86) 13823705446.
- 5. Is this camera waterproof?All of our cameras are completely waterproof with an IP69 rating, strong and reliable.
- 6. Does the camera work at night?Yes. Most of our cameras have infrared lights and excellent night vision.
