RV Dual Lens Waterproof Night Vision Rearview Camera BR-RVC13

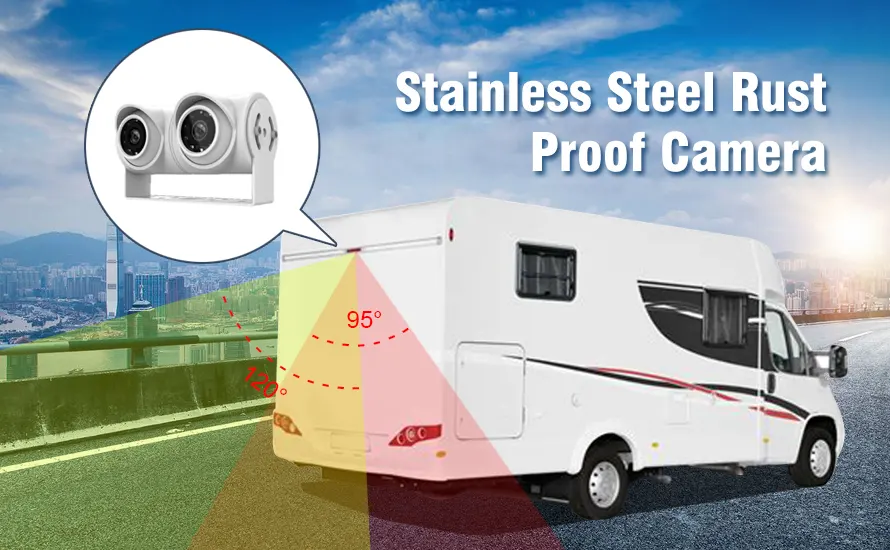

BR-RVC13 This Rear view camera with dual lens is widely applied to recreational vehicles. The reversing view is 120 degrees and the back view is 95 degrees. With a robust encasing and an IP69K rating, this backup camera will be fit to withstand all weather conditions. Picture quality is super high with720P. It also enables you to see in total darkness with 12 infra-red lights. It comes with 13 months warranty, 6P connector and a standard 20M extension cable.
|
Model |
BR-RVC13 |
|
|
Camera |
Sensor |
1/3 CMOS |
|
|
TV System |
NTSC/PAL |
|
|
Camera |
Dual lens rear view camera |
|
|
Camera Ir LED |
12pcs IR lamp with excellent night vision |
|
|
Min IIIumination |
0.1Lux@(F1.2,AGC ON);0Lux With IR |
|
|
Electronic Shutter |
Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s |
|
|
Focus |
2.8mm/3.6mm |
|
|
Lens Interface |
M12 |
|
|
F.O.V |
120° (D)、95°（H）、70°（V） 95° (D)、70°（H）、55°（V） |
|
|
Backlight Compensation |
Auto |
|
|
Resolution |
700TVL(AHD 720P) |
|
|
Signal to Noise ratio |
Better than 48dB |
|
Interface |
Connect |
2*4 PinAviation Female Interface |
|
|
Video Output |
1Vp-p Composite Output(75Ω) |
|
|
Audio Input |
N/A |
|
|
Audio Output |
N/A |
|
General |
Material |
Metal |
|
|
Operating Temperature |
-30℃~70℃ |
|
|
Power Supply |
DC 9-36V±10% |
|
|
Power |
|
|
|
Waterproof |
IP69K |
|
|
External Dimensions |
96.4*74.6*61.2mm（L*W*H) |
|
|
Weight Approx |
|
DOWNLOAD CENTER
PICTURE CENTER
Dual-lens rearview mirrors are designed for cars, trucks, SUVs, minivans, used cars, new or used cars. High precision camera provides you with high quality images, very clear video. Waterproof index of IP69k conforms to international standard. It is easy to install. We focus on providing our customers with good quality products and services.
VIDEO CENTER
ANSWER CENTER
- 1. Do you provide instructions？We put a paper manual in the product packaging box. If lost, please search our product model directly and download the product manual on the product page.
- 2. Can I install my own camera system？Many people can easily install our system without hiring help. Click here to search for recommended installations in your region.
- 3. Is the quality of this product reliable?All of our products have been strictly inspected, including water-proof test, high and low temperature test, anti-vibration test, aging test and so on. CE, FCC, E-MARK, ISO, RoHS and TS16949 are available.
- 4. Can I customize the system?Yes, most of our systems are customizable, and all components in our wired system can be interchanged. For customized orders, please call (86) 13823705446.
- 5. Is this camera waterproof?All of our cameras are completely waterproof with an IP69 rating, strong and reliable.
- 6. Does the reversing camera work at night?Yes. Most of our cameras have infrared lights and excellent night vision.
