BR-RVS7001-06 Rear View System with 7

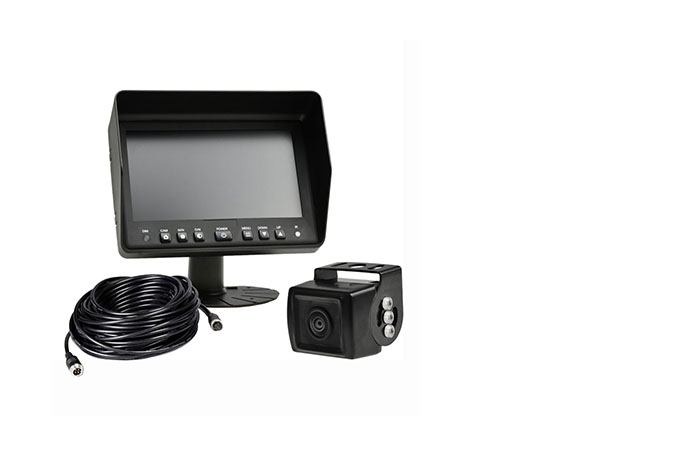

BR-RVS7001-06 This system consists of a 7" monitor, a rear view camera and a 20M cable. The 7" monitor supports two camera inputs with two trigger cables. It comes with a 4P connector and 13 months warranty. The power input is 12-36V. And the camera is completely waterproof with an IP69K rating, strong and reliable. It comes with excellent night vision with infrared lights.
|
MODEL |
BR-TM7001-BK03-H |
|
Screen size |
7“ IPSSuper TFT panel |
|
Aspect Ratio |
16:9 image |
|
Video Input |
1 channels（CVBS） |
|
Audio Input |
2 Channels |
|
Speaker |
N/A |
|
Trigger |
1 channels |
|
Resolution |
800 x 3(RGB) x 480 |
|
Brightness |
500cd/m2 |
|
Contrast radio |
500:1 |
|
Viewing Angle |
H:75 V:75 |
|
External Dimensions |
188.3*132.1*80.2mm (W)*(H)* (T) |
|
Operating Voltage |
12-36V DC |
|
Power |
N/A(No cameras) |
|
Operation Temperature: |
-30℃~+85℃.RH95% Max |
|
Storage Temperature: |
-40℃~+90℃.RH95% Max |
|
Waterproof |
IP69K |
|
Options |
Speaker,Remote Control |
DOWNLOAD CENTER
PICTURE CENTER
BR-RVS7001-06 7" LCD monitor with a 170 degree supper wide angle rear view camera(installed on the rear end of the car) The monitor supports 2 channel video inputs. It is suitable for your car, truck, VAN, RV, bus monitoring. It can be installed in the truck or car. Its operation Temperature -40℃~+70℃. The screen can automatically switch when reversing, which can help drivers drive safely because they can see every angle of the image. It can work well day and night.
VIDEO CENTER
ANSWER CENTER
- 1. Do you provide instructions？We put a paper manual in the product packaging box. If lost, please search our product model directly and download the product manual on the product page.
- 2. Can I install this product？Many people can easily install our products without hiring help. Click here to search for recommended installations in your region.
- 3. Is the quality of this product reliable?All of our products have been strictly inspected, including high and low temperature test, anti-vibration test, aging test and so on. CE, FCC, E-MARK, ISO, RoHS and ATF16949 are available.
- 4. Is the image on the screen clear?Yes, our monitor comes with high resolution and brightness.
