BR-RVS7004-AHD 7”AHD Monitor Rear View System

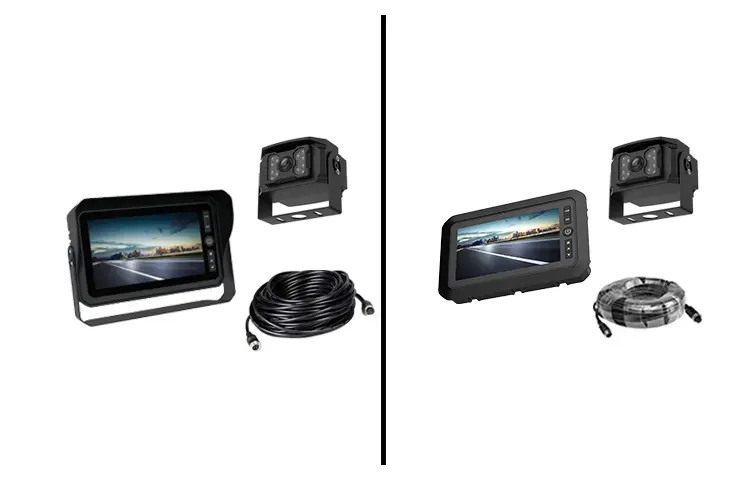

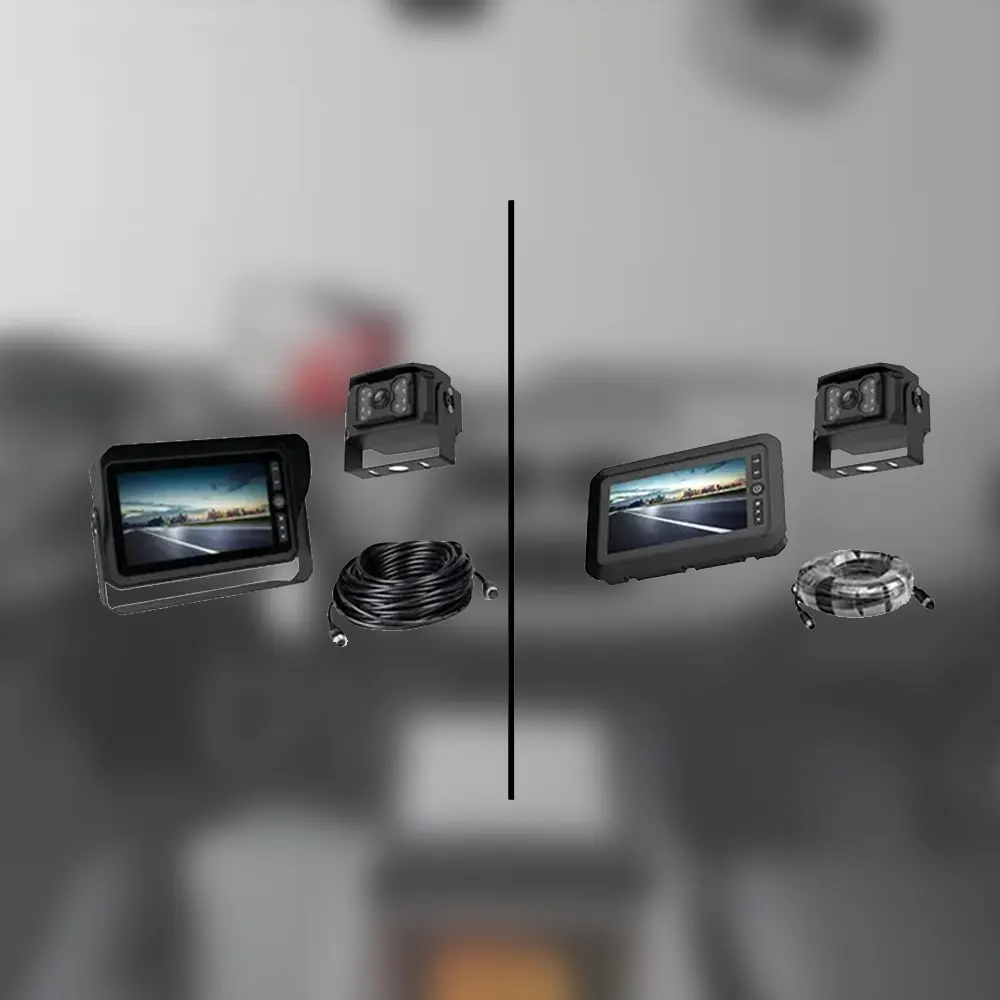

BR-RVS7004-AHD This system consists of a 7” AHD monitor, a rear view camera and a 20M cable. The AHD monitor supports headrest mount and U shape bracket. The system is suitable for truck, trailer,fleet and van,etc. And the camera is completely waterproof with an IP69K rating, strong and reliable. It comes with excellent night vision with infrared lights.
|
MODEL |
BR-TM7004-AHD |
|
Screen size |
7’ TFT panel |
|
Aspect Ratio |
16:9 image |
|
Video Input |
2 channels（CVBS/AHD720P/1080P） |
|
Audio Input |
2 Channels |
|
Speaker |
1 Channel(Options) |
|
Trigger |
2 channels |
|
Resolution |
1024 x 3(RGB) x 600 |
|
Brightness |
520cd/m2 |
|
Contrast radio |
700:1 |
|
Viewing Angle |
H:85 V:85 |
|
External Dimensions |
218.4*159.7*85.3mm (W)*(H)* (T) |
|
Operating Voltage |
12-36V DC |
|
Power |
N/A |
|
Operation Temperature: |
-40℃~+80℃.RH95% Max |
|
Storage Temperature: |
-45℃~+90℃.RH95% Max |
|
Waterproof |
IP65 |
|
Options |
Speaker，remotecontrol，headrest |
DOWNLOAD CENTER
PICTURE CENTER
BR-RVS7004-AHD 7" AHD monitor with 1 rear view camera to reduce the blind spot. The monitor supports 2 channel video inputs. It is suitable for your car, truck, VAN, RV, bus monitoring. It can be installed in the truck or car. Its operation temperature is -30℃~+70℃. The screen can automatically switch when reversing, which can help drivers drive safely because they can see every angle of the image. It can work well day and night.
