BR-TQS7001 Rear View System for Your Car, Truck, VAN, RV, Bus

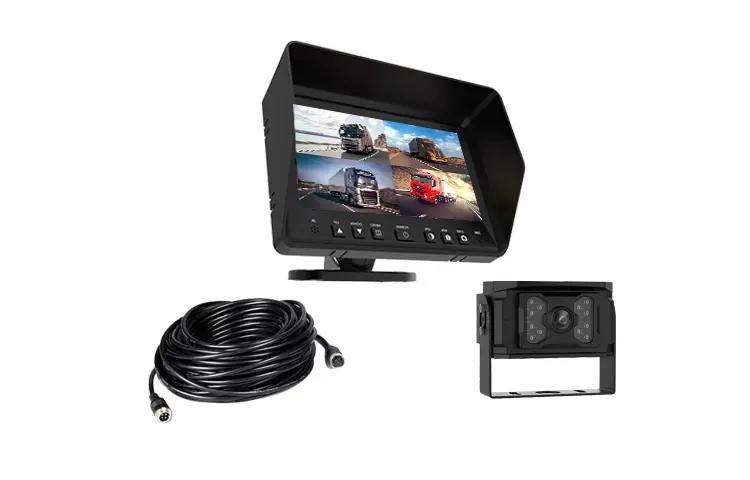

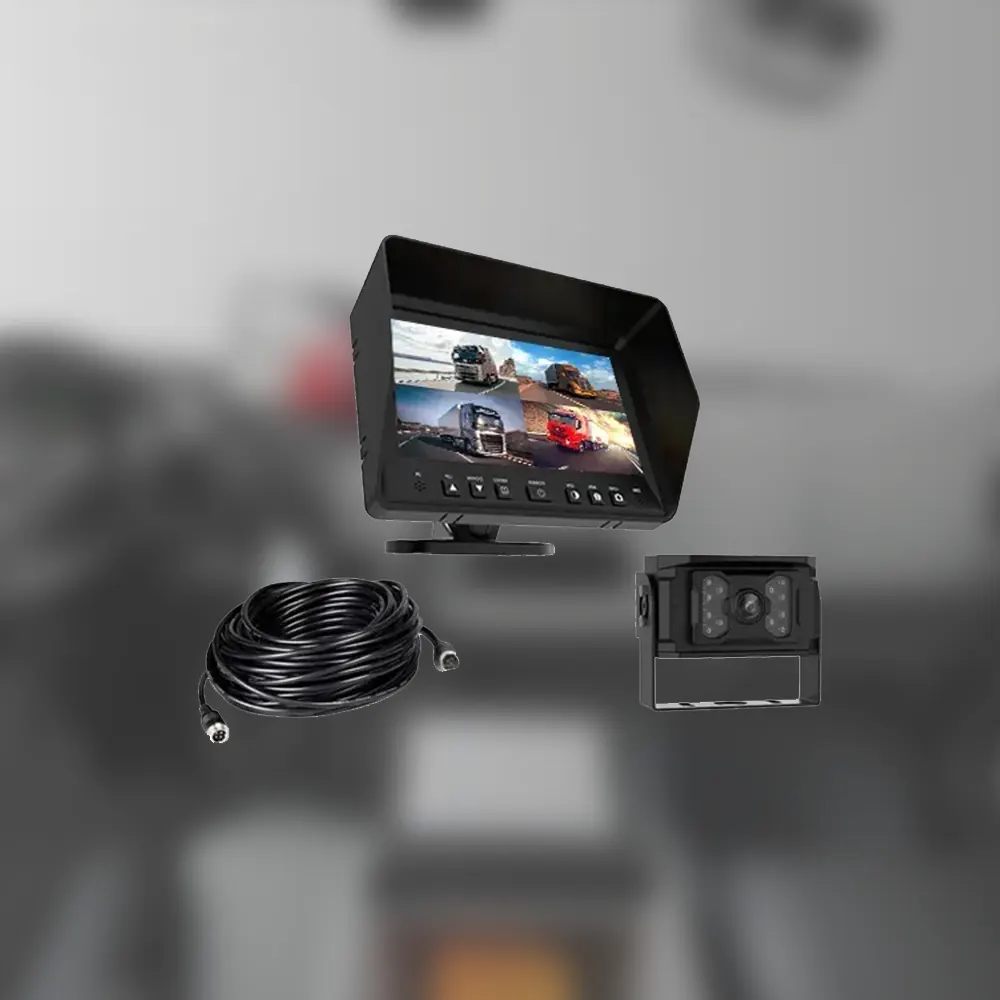

BR-TQS7001 This backup camera system is complete with a crystal clear 7" DIGITAL TFT LCD color monitor with distance grid lines, mirror image and all the wires, connectors and mounts you will need. The rear view camera system is completely weather proof with an IP69K rating, strong and reliable, shock resistant. This system consists of a digital monitor, a rear view camera and a 20M cable. The 7" quad monitor supports 4 camera inputs. All kinds of camera are suitable. With LCD panel, you can see the image at any angle. It comes with high resolution of 720P and high brightness of 520cd. It’s easy to master with remote control and adjustable fan-shaped bracket. The driver can always get a very clear image whether it is day or night.
|
Item No. |
BR-TQS7001 |
|
Resolution |
800*480*RGB |
|
Certificate: |
FCC,CE, E-mark，ISO9001,TS16949, RoHs |
|
System |
PAL/NTSC automatically |
|
Audio and video |
4 video/1audio input Quad images,2/3/4 image optional |
|
OSD menu |
Language,brightness, contrast, trigger priority delay display setting |
|
Luminance |
250cd/SM |
|
camera |
IP 69K |
|
Image Type |
1/4 1/3 Inch Color CCD |
|
Horizontal Resolution |
420TV 700TV Lines for selection |
|
Shockproof |
10G |
|
Power input |
9-36V power input |
|
Operating temperature |
-40°C to +70°C |
DOWNLOAD CENTER
PICTURE CENTER

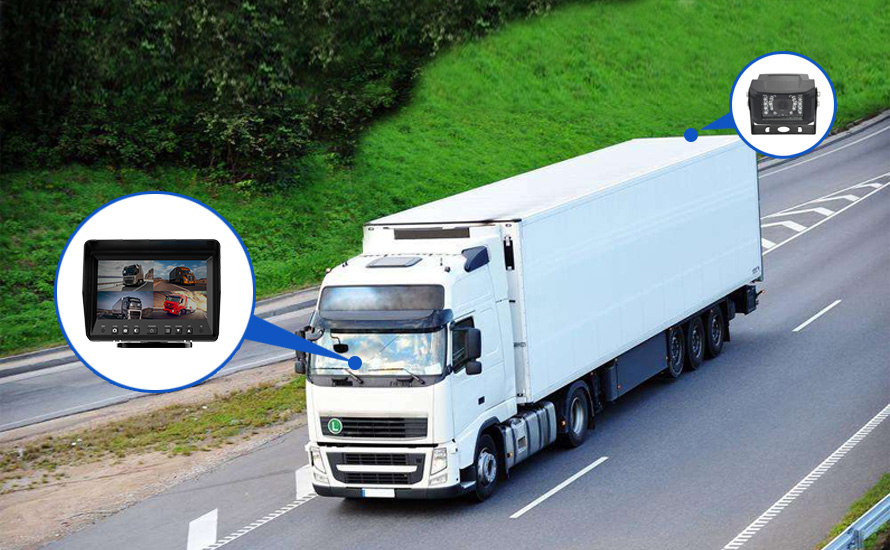

BR-TQS7001 7" quad split screen with distance grid lines and mirror image capability, rear view camera with night vision. The monitor supports 4 channel Video inputs. It is suitable for Your car, truck, van, RV and bus monitoring. It can be installed in the truck or car. Its operation temperature is -40℃~+70℃. The screen can automatically switch when reversing, which can help drivers drive safely, because you can see every angle of the image. It can work well day and night.
VIDEO CENTER
ANSWER CENTER
- 1. Do you provide instructions？We put a paper manual in the product packaging box. If lost, please search our product model directly and download the product manual on the product page.
- 2. Can I install this product？Many people can easily install our products without hiring help. Click here to search for recommended installations in your region.
- 3. Is the quality of this product reliable?All of our products have been strictly inspected, including high and low temperature test, anti-vibration test, aging test and so on. CE, FCC, E-MARK, ISO, RoHS and ATF16949 are available.
- 4. Can I customize the system?Yes, most of our systems are customizable and all components in our wired system can be interchanged. For customized orders, please call (86) 13823705446.
