BR-TQS7001-4cams Rear View System for Your Car, Truck, VAN, RV, Bus

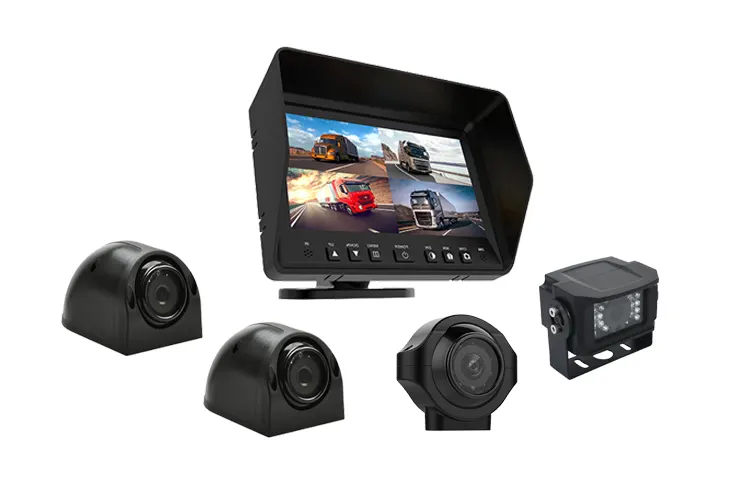

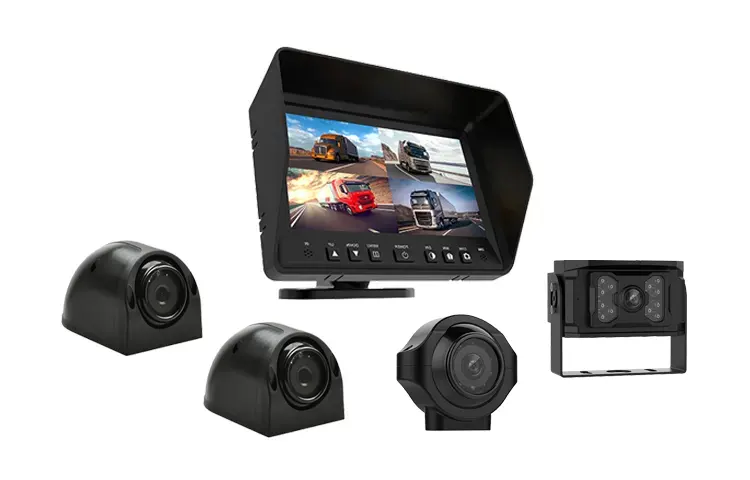

BR-TQS7002-4cams Brvision 7 inch monitor, TFT digital color button monitor with 4 inputs, capable of connecting and viewing up to four cameras simultaneously. 9 languages for user operation selection. With multiple viewing options, you can choose how many cameras you want to view and in which format. It is equipped with a rear-view camera, a front-view camera, and two side-view cameras. These cameras are all with night vision. They are completely waterproof with an IP69K rating reliable, strong and suitable for any harsh environment.
Real-time live vehicle closed-circuit television system
|
Item No. |
BR-TQS7001-4C |
|
Monitor |
7’’ inch TFT monitor 4CH input |
|
Image |
16:9 |
|
Color system |
PAL/NTSC(selectable) |
|
Resolution |
WSVGA 1024 |
|
horizontal |
600 vertical pixel |
|
Power requirement |
12/24V DC |
|
Language |
9 languages for selection |
|
Power consumption |
5W |
|
Dimension |
261 (L) x 177 (W) x 70 (D) |
|
Operating temperature |
-30° to +70° |
|
Storage temperature |
-40° to +80 |
|
Certificate |
CE,EMC,FCC,ISO9001：2008,E8 |
DOWNLOAD CENTER
PICTURE CENTER

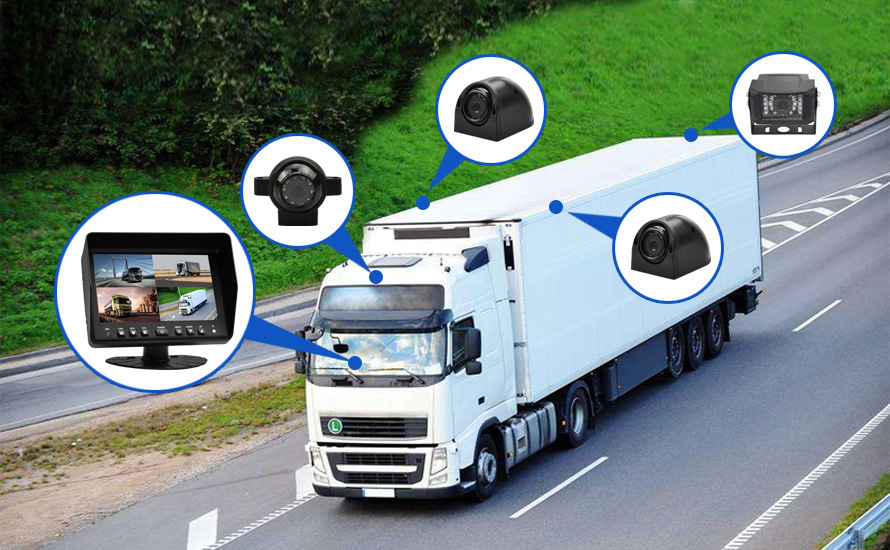

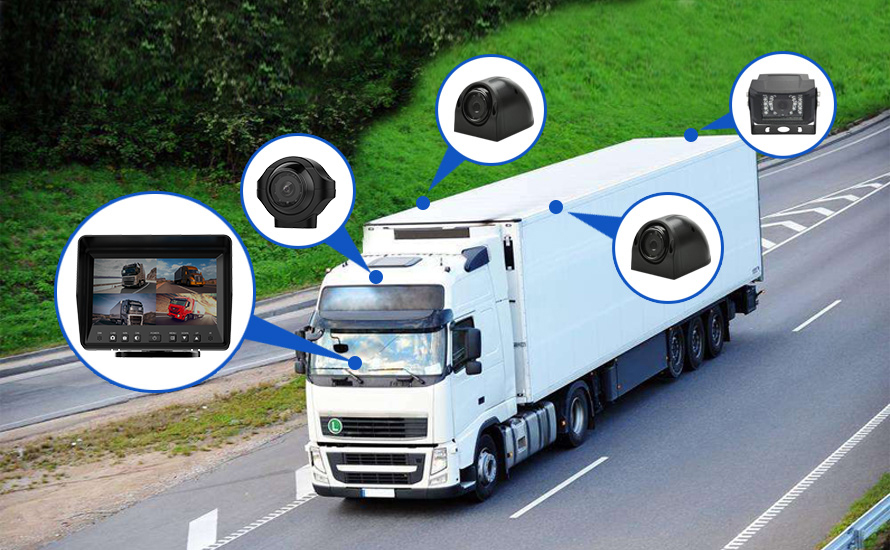

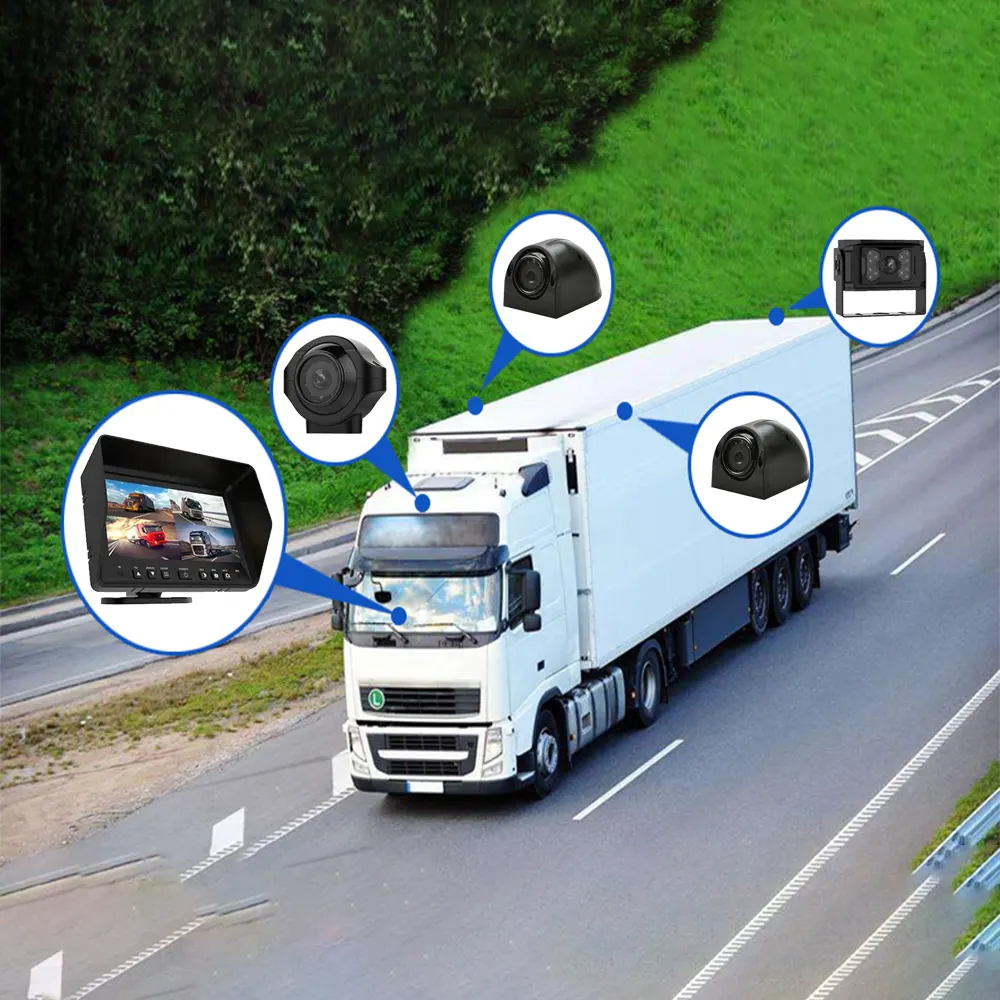

BR-TQS7001-4cams 7" quad monitor with split screen with a rear view camera/1 front camera /2 side cameras for reduce the blind spot. The monitor supports 4 channel video inputs. It is suitable for your car, truck, VAN, RV, bus monitoring. It can be installed in the truck or car. Its operation temperature is -30℃~+70℃. The screen can automatically switch when reversing, which can help drivers drive safely because they can see every angle of the image. It can work well day and night.
VIDEO CENTER
ANSWER CENTER
- 1. Do you provide instructions？We put a paper manual in the product packaging box. If lost, please search our product model directly and download the product manual on the product page.
- 2. Can I install this product？Many people can easily install our products without hiring help.
- 3. Is the quality of this product reliable?All of our products have been strictly inspected, including high and low temperature test, anti-vibration test, aging test and so on. CE, FCC, E-MARK, ISO, RoHS and ATF16949 are available.
- 4. Can I customize the system?Yes, most of our systems are customizable and all components in our wired system can be interchanged. For customized orders, please call (86) 13823705446.
