BR-RVS5001 Waterproof Night Vision 2-CH HD PAL/NTSC Rear View System

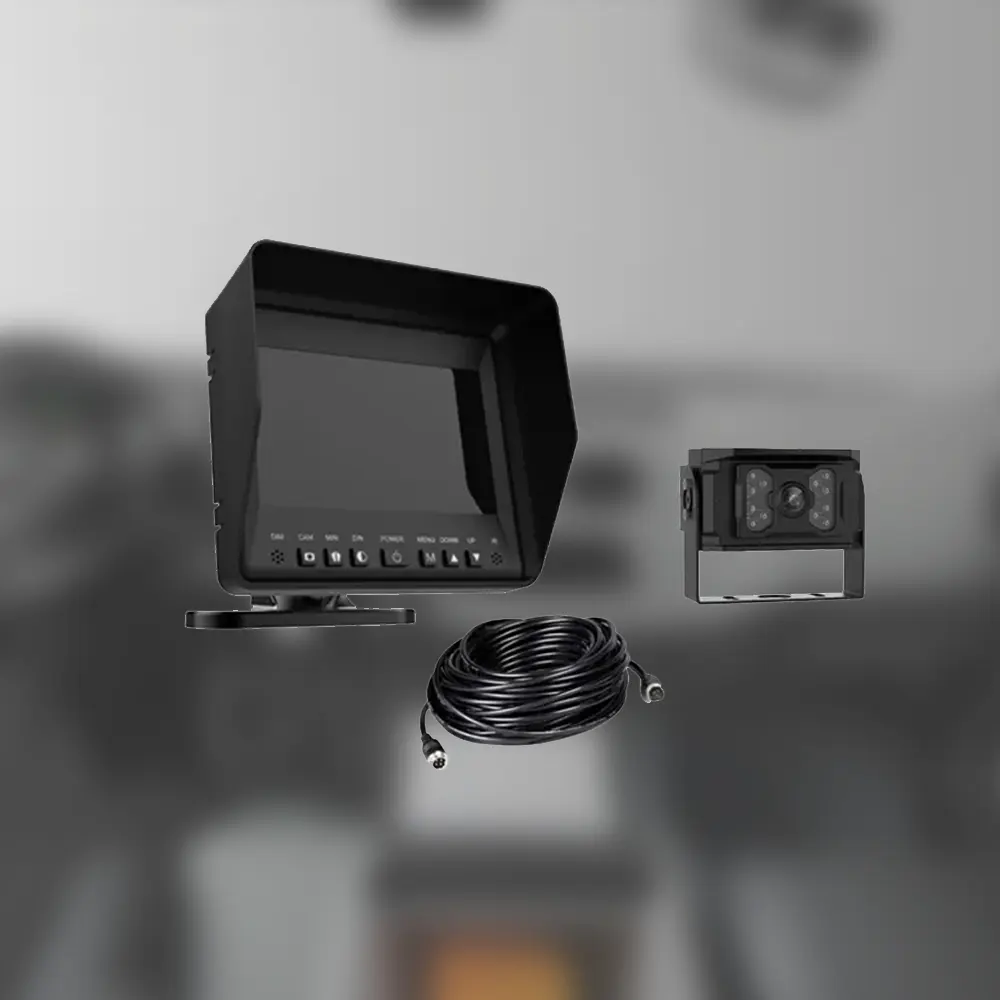

BR-RVS5001 5" heavy duty rear view system. It is designed for heavy duty vehicle backup system,suitable for trucks, buses, dirt-wagons, cranes, etc. 5" monitor with 2 cameras input, 2 trigger cables. When matching with RVC16, 20pcs IR lamp. Perfect rear view system to keep safe driving.

Real-time live vehicle closed-circuit television system

Item No.

BR-RVS5001

Resolution

800*480*RGB

Monitor

5’’LCD monitor with button, 2CH input, 2 triggers

System

PAL/NTSC automatically

Audio and video

2 video/1audio input, 1/2 image optional

OSD menu

Language,brightness, contrast, trigger priority delay display setting

Luminance

250cd/SM

camera

IP 69K

Lens Angle (Deg.)

120°

Image Type

1/4 1/3 Inch Color CCD for selection

Horizontal Resolution

420TV /700TV Lines for selection

Shockproof

10G

Package

White box

Warranty

1 year for standard

Power input

9-36V

Operating temperature

-30°C to +70°C

Storage Temperature

-40°C to +70°C

Certificates

FCC,CE, E-mark,ISO9001,TS16949, RoHs

||||||||||||
All Truck Cam System Contact us
DOWNLOAD CENTER
PICTURE CENTER




BR-RVS5001 5" heavy duty rear view system. The monitor supports 2 channel video inputs. It is suitable for your car, truck, VAN, RV, bus monitoring. It can be installed in the truck or car. Its operation temperature is -40℃~+70℃. The screen can automatically switch when reversing, which can help drivers drive safely because they can see every angle of the image. It can work well day and night.
