BR-TQS7002-DVR 7

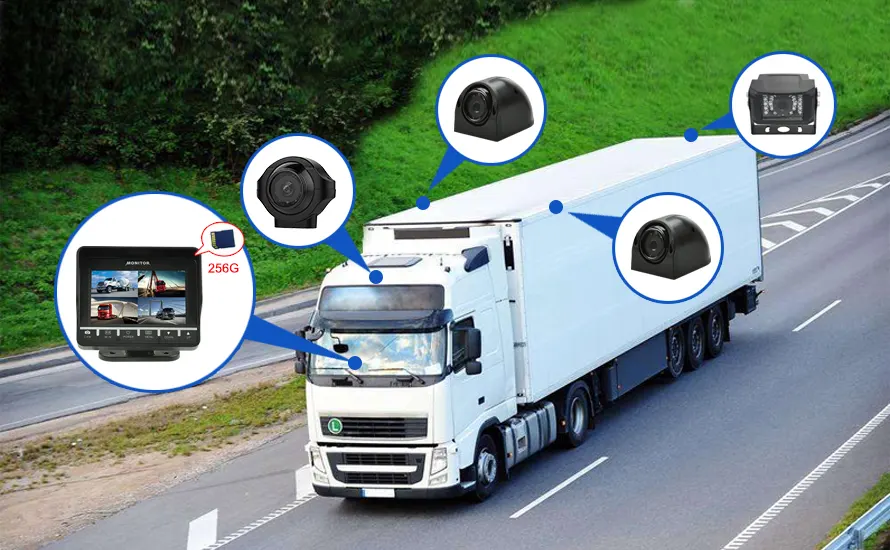

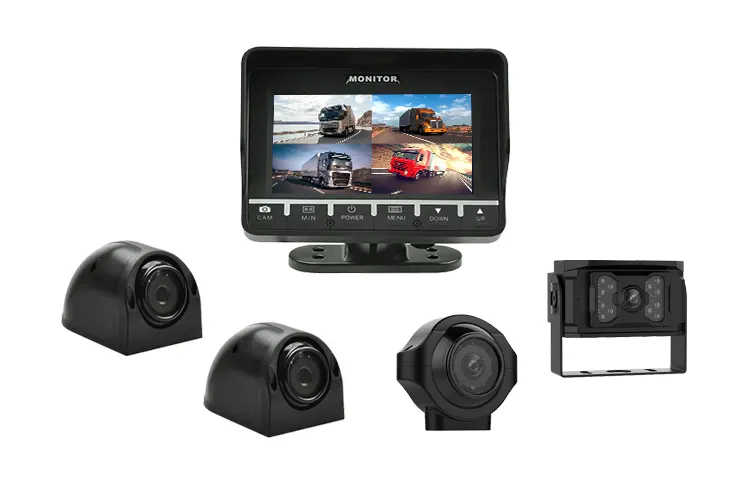

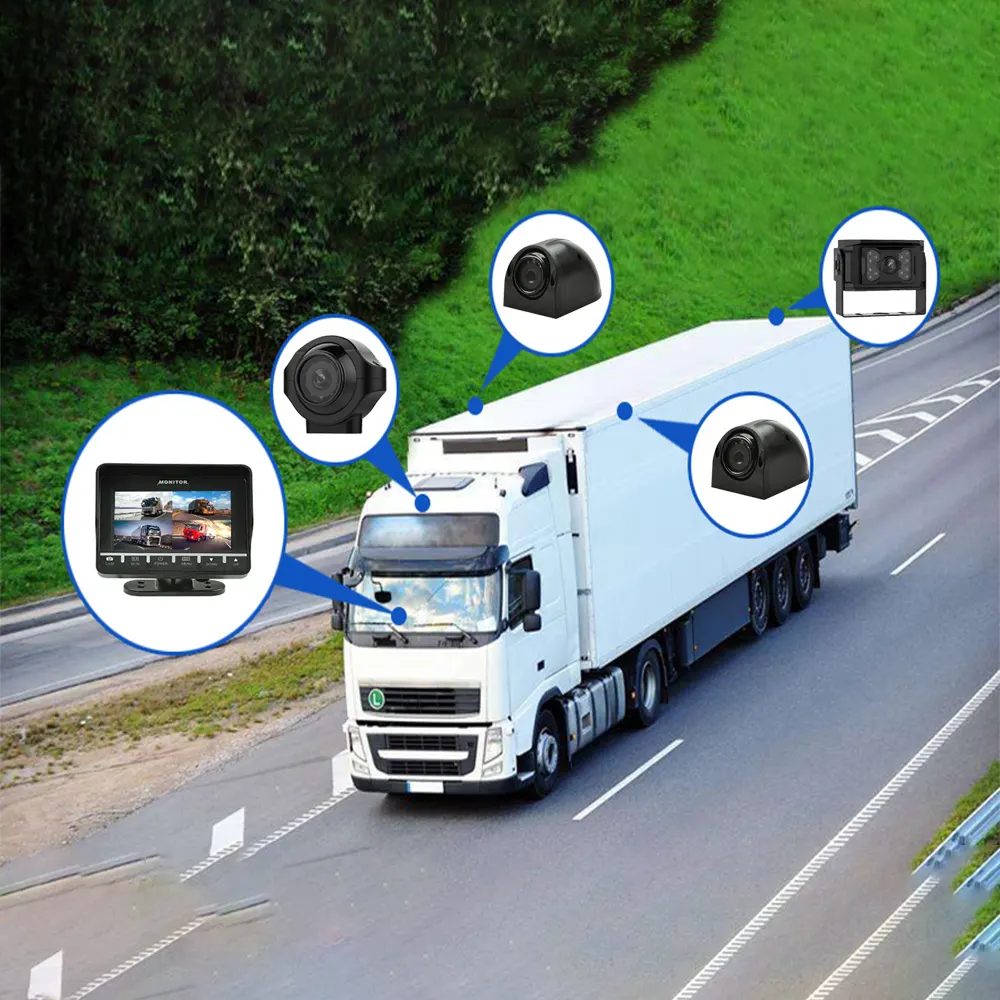

BR-TQS7002-DVR The system consists of a monitor with recording function, a front-view camera, a rear-view camera and two side-view cameras. It is suitable for many kinds of large vehicles, such as trucks, trailers, buses, etc. It can provide all-round monitoring for the vehicle to assist the driver to drive safely. The 7” DVR monitor supports 4 camera inputs with 4 trigger cables. All waterproof cameras come with excellent night vision. They can provide the driver with a very clear image whether it is day or night.
|
MODEL |
BR-TMQ7002-DVR |
|
Screen size |
7“ IPSSuper TFT panel |
|
Aspect Ratio |
16:9 image |
|
Video Input |
4 channels Splid（CVBS/AHD720P/1080P） |
|
Audio Input |
4 Channels |
|
Speaker |
1 Channel(Options) |
|
Trigger |
4 channels |
|
Resolution |
1024 x 3(RGB) x 600 |
|
Brightness |
520cd/m2 |
|
Contrast radio |
700:1 |
|
Viewing Angle |
H:85 V:85 |
|
Storage |
128G TF Card |
|
External Dimensions |
189*133*57.5mm (W)*(H)* (T) |
|
Operating Voltage |
12-36V DC |
|
Power |
2.6W(No cameras) |
|
Operation Temperature: |
-40℃~+80℃.RH95% Max |
|
Storage Temperature: |
-45℃~+90℃.RH95% Max |
|
Waterproof |
IP65 |
|
Options |
Speaker，remote control |
DOWNLOAD CENTER
PICTURE CENTER
BR-TQS7002-DVR 7" 720P DVR monitor with quad split screen, support 256G SD card, BRvision Unique Design support 4 channel video inputs,reliable and waterproof. It is suitable for your car, van, bus and truck monitoring. It can be installed in the truck or car. Its operation Temperature is -30℃~+85℃. The screen can automatically switch when reversing, which can help drivers drive safely because they can see every angle of the image. It can work well day and night.
VIDEO CENTER
ANSWER CENTER
- 1. Do you provide instructions？We put a paper manual in the product packaging box. If lost, please search our product model directly and download the product manual on the product page.
- 2. Can I install this product？Many people can easily install our products without hiring help. Click here to search for recommended installations in your region.
- 3. Is the quality of this product reliable?All of our products have been strictly inspected, including high and low temperature test, anti-vibration test, aging test and so on. CE, FCC, E-MARK, ISO, RoHS and ATF16949 are available.
- 4. How long is the warranty?All of our products comes with 13 months warranty.
