BR-TM1001(for DVR) BRvision Unique Design, 10.1

This 10.1" digital LCD monitor supports 1 camera input, which is really cost-effective. It is equipped with TFT panel, you can see the image at any angle. With sun visor and high resolution of 720P, we can get a better view when driving. It’s convenient to use with remote control and adjustable fan-shaped bracket. It is suitable for kinds of vehicles.

All Monitor For DVR Contact us

MODEL	BR-TMQ1001-AHD
Screen size	10“ IPS Super TFT panel
Aspect Ratio	16:9 image
Video Input	1 channels（CVBS）
Audio Input	1 Channels
Speaker	1 Channel(Options)
Trigger	3 channels
Resolution	1024 x 3(RGB) x 600
Brightness	520cd/m2
Contrast radio	600:1
Viewing Angle	H:70 V:70
External Dimensions	26.12176.871.2mm (W)(H) (T)
Operating Voltage	12-36V DC
Power	3.8W(No cameras)
Operation Temperature:	-40℃~+80℃.RH95% Max
Storage Temperature:	-45℃~+90℃.RH95% Max
Waterproof	IP65
Options	A choice between two(Speaker&remote control)

All Monitor For DVR Contact us

DOWNLOAD CENTER

Download more

PICTURE CENTER

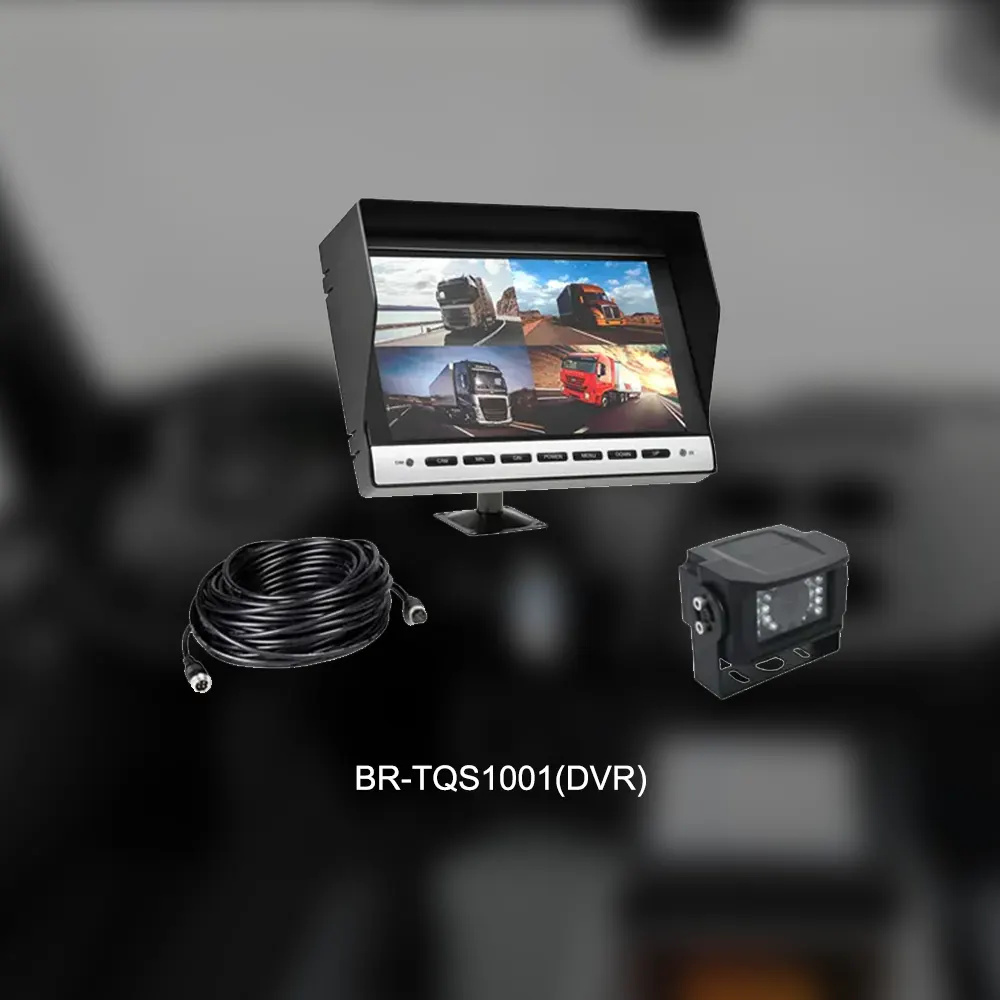

The monitor supports 1 channel video inputs,strong and shockproof. It is suitable for car or truck monitoring. It can be installed in the truck or car. Its operation temperature is -30℃~+85℃. The screen can automatically switch when reversing,which can help drivers drive safely,because you can see every angle of the image. It can work well day and night.
