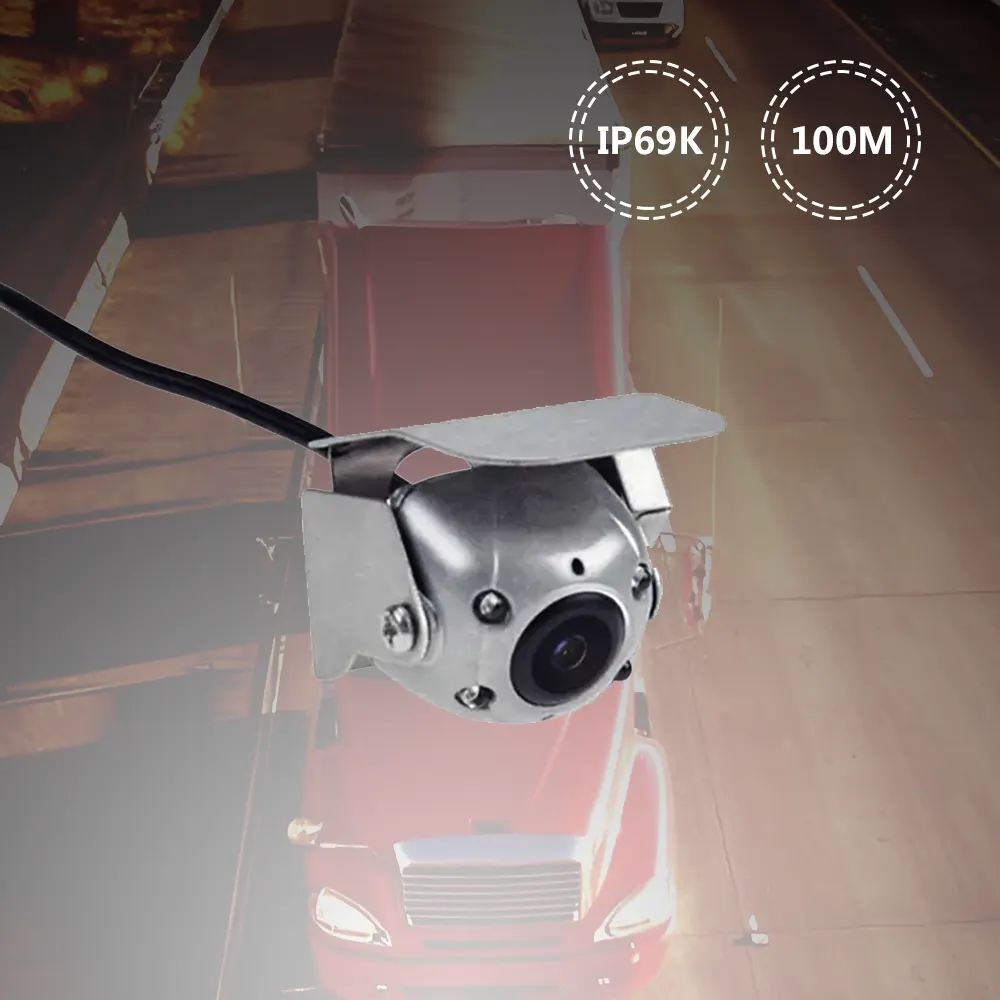

BR-MNC10 MINI Size wide angle camera with stainless steel housing.
MINI Size wide angle vehicle camera with stainless steel housing. IP69K mini camera for vwhicle, with IR light for night vesion, 4pin lock connector and RCA connector, customized connector is also offered.
|
Model |
BR-MNC10 |
|
|
Camera |
Sensor |
1/3 CMOS |
|
TV System |
NTSC/PAL |
|
|
Camera Ir LED |
4pcs IR lamp with excellent night vision |
|
|
Min IIIumination |
0.1Lux@(F1.2,AGC ON); |
|
|
Electronic Shutter |
Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s |
|
|
Focus |
2.14mm |
|
|
Lens Interface |
M12 |
|
|
F.O.V |
138° (D)、117°（H）、75°（V） |
|
|
Backlight Compensation |
Auto |
|
|
Resolution |
700TVL(AHD 720P) |
|
|
Signal to Noise ratio |
Better than 48dB |
|
|
Interface |
Connect |
4 Pin Aviation Female Interface |
|
Video Output |
1Vp-p Composite Output(75Ω) |
|
|
Audio Input |
None |
|
|
Audio Output |
None |
|
|
General |
Material |
Metal |
|
Operating Temperature |
-30℃~70℃ |
|
|
Usage |
For passenger vehicles |
|
|
Operating Voltage |
DC10-32V±10%(From Reversing Monitor DC12V) |
|
|
Power |
|
|
|
Waterproof |
IP69K |
|
|
External Dimensions |
40.6*36*30.9mm(L*W*H) |
|
|
Weight Approx |
|
|
DOWNLOAD CENTER
PICTURE CENTER
The rearview camera has a compact design, which is suitable for all types of vehicles. The camera is usually mounted on the license plate at the rear of the vehicle and has a wide 180 degree view of sight. Ideal rear-view camera: waterproof coefficient is 69, maximum and minimum temperature power is -30℃~80℃. Whether sunny or rainy, hot or cold, the car’s backup camera will give you good service day and night.
